Item # 61500 BRAND: Eastwood Elite

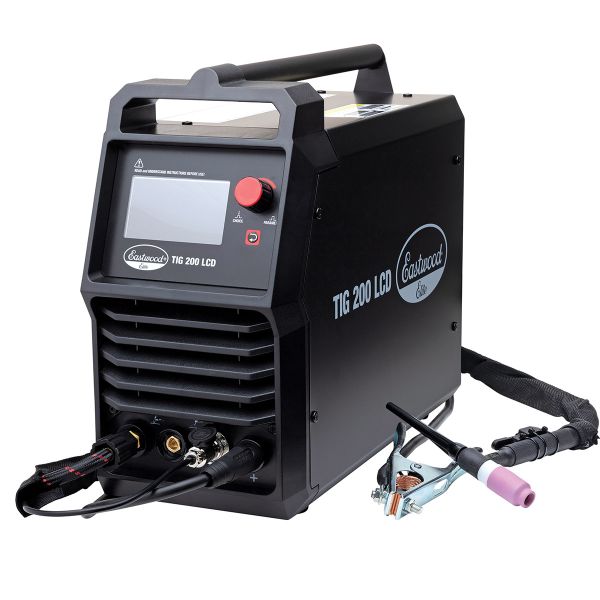

Eastwood Elite 200 Amp LCD Digital AC/DC TIG Welder

New Professional Grade TIG Welder with LCD Screen, Pulse Capability and a Gas Lens Kit Included
New Professional Grade TIG Welder with LCD Screen, Pulse Capability and a Gas Lens Kit Included
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 18.28ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Reg. $1,249.99 Sale $1,099.97 Save $150.02
Loading...
Loading...
Save for Later
New Professional Grade TIG Welder with LCD Screen, Pulse Capability and a Gas Lens Kit Included

3 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood Elite 200 Amp LCD Digital AC/DC TIG Welder

Product Overview:

Description

Professional 200 Amp TIG Welder with Gas Lens Kit

The Eastwood Elite TIG 200 LCD WELDER is a highly versatile machine that allows both TIG and Stick welding on both 120 and 240 volts. The Eastwood exclusive, color LCD User Interface Screen provides maximum ease of use and quick navigation. Five fully programmable presets allow simple and easy retrieval of favorite settings. The latest Welder Inverter Technology delivers a unit that is compact and lightweight, while fully capable of high quality welds up to 1/4” on steel, stainless steel, and aluminum.

This Eastwood LCD TIG also has features to make you a better fabricator like a pulse function to minimize warpage and blow-through and the option of either finger or rocker style foot pedal controls. A flex head torch with gas lens kit (expensive upgrades on other units) come standard with this machine for the best welds. We’ve designed the best TIG welding machine that has all the pro features you need at an amazingly low price. A three-year manufacturer’s warranty shows how confident we are that our digital TIG welders will perform.

The Eastwood Elite TIG 200 AC/DC Welder Features:

  • Weldable Materials and Thickness- Steel, stainless and aluminum up to 1/4"
  • Dual Voltage- Operate on 120 or 240 volts.
  • DC TIG - Weld steel and stainless steel.
  • DC TIG/Pulse - Minimize warpage and prevent blow through on thin steel and stainless steel.
  • AC TIG - Weld aluminum with ease.
  • AC TIG/Pulse - Minimize warpage and prevent blow through on thin aluminum.
  • 2T/4T - 2 touch and 4 touch finger control used for amperage control without a foot pedal.
  • AC Frequency Control - Fine tune the arc cone width for precise aluminum welding.
  • Programmable Settings - 5 Factory Presets that are customizable to quickly change between your favorite settings.
  • Flex Head 17 Torch - Adjust your torch head to the perfect torch angle in hard to reach places.
  • Gas Lens Kit- Improved shielding gas coverage and visibility for better welds
  • Rocker-Style Foot Pedal - Infinite amperage adjustment without leg fatigue.
  • Square Wave IGBT Inverter - Power source enables welding of materials from aluminum to steel.
  • Manual Arc (Stick) - DC Positive/Negative with Hot Start and Arc Force control to prevent rod stick and superior arc control. (Requires optional Electrode Holder) 20517
  • Best Value on the Market- You won't find a TIG with all of these Pro Features at a better price. Comparable units cost HUNDREDS More, and beware of lesser units that have digital functions without any of the features like Pulse and AC Frequency Control that will make you a better welder.
  • Features You Want- If you're a pro, this machine has the features you want. If you're new to TIG welding, it's easy to setup correctly and begin welding, so as you grow as a welder it has the everything you need to raise your skills to the next level.

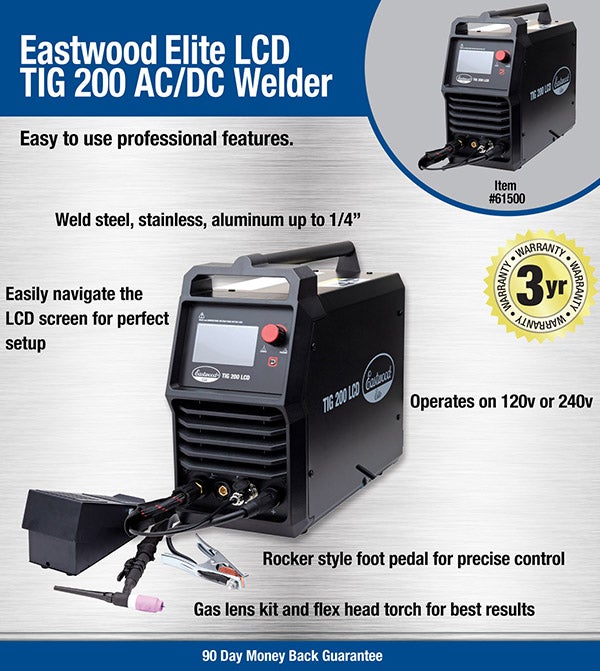

Eastwood Elite TIG 200 LCD AC/DC Welder

You won't believe how easy the LCD screen is to navigate and program to get great welds. Whether you're new to TIG welding or a seasoned pro, you'll be stacking dimes quicker than ever with this Eastwood Elite 200 Amp TIG Welder.

Warranty

3 Year Eastwood Warranty

Specifications

  • Input Voltage: 240V / 1 Phase / 50/60 HZ
  • Input Voltage: 120V / 1 Phase / 50/60 HZ
  • Required Breaker: 50 Amps
  • Power Cord Receptacle Plug: NEMA 6-50P
  • Output Amperage: 10-200 Amps
  • Welding Capacity on 240V: 1/4"-thick
  • Welding Capacity on 120V: 1/8"-thick
  • Duty Cycle - TIG - 240V: 20% at 200 Amps / 100% at 89 Amps
  • Duty Cycle - TIG - 120V: 20% at 120 Amps / 100% at 54 Amps
  • Duty Cycle - Stick - 240V: 20% at 180 Amps / 100% at 80 Amps
  • Duty Cycle - TIG - 120V: 20% at 120 Amps / 100% at 54 Amps
  • Starting Method: High Frequency
  • AC Balance: 10-50%
  • AC Frequency: 30-200hz (10-100amps), 30-100hz (above 100amps)
  • Pulse Frequency: (0.1-800 Hz)
  • Pulse Ratio: 10-90%
  • Torch Control: 2T/4T
  • Slope up time: 0 – 10s
  • Slope Down Time: 0 – 10s
  • Base Current: 5 – 90 Amps
  • Peak Current: 5 – 200 Amps
  • Pre Flow Time: 0.1 – 1.0 seconds
  • Post Flow Time: 0 – 15 seconds
  • Tungsten Diameters:1/16" to 3/32" (1.6mm - 2.4mm)
  • Cooling Method: Fan
  • Power Cable Length: 6 feet
  • Weight: 34.17 lbs
  • Dimensions: 18.27" Long x 8.39" Wide x 15.94" Tall


Duty Cycle

The rated Duty Cycle refers to the amount of welding that can be done within an amount of time. The Eastwood Elite TIG 200 LCD has a duty cycle of 20% at 200 Amps. It is easiest to look at your welding time in blocks of 10 Minutes and the Duty Cycle being a percentage of that 10 Minutes. If welding at 200 Amps with a 20% Duty Cycle, within a 10 Minute block of time you can weld for 2 Minutes, with 8 Minutes of cooling for the Welder. If the Duty Cycle is exceeded, the Welder will automatically shut off, however the fan will continue running to cool the internal components. When a safe temperature has been reached, the Welder will automatically switch the Welder output back on. To increase the duty cycle you can turn down the Amperage Output control.

Shipping

Ships via UPS

In the Box

Contents

(1) Eastwood Elite TIG 200 AC/DC Welder with 6' (1.80m) power cord
(1) Shielding Gas Regulator
(1) Shielding Gas Hose, 4.6’ [1.4m]
(1) Ground Cable with Clamp, 9.5’ [2.9m]
(1) Flexible TIG Torch (WP17F) with 12’ [3.65m] cable and 3/32" Gas Lens Collet Body
(1) Foot Pedal (no adjustment dial) with 16' (4.85m) cable
(1) NEMA 5-15p to NEMA 6-50R Cable, 2' (0.6m)
(1) #8 Gas Lens Style Cup
(1) 3/32" Collet
(1) Long Back Cap
(1) Collet Body (installed)
(1) 1/16” Gas Lens Collet Body
(1) 3/32” Collet
(1) 1/16” Collet
(1) 3/32” x 6" Tungsten, Red
(1) 3/32” x 6" Tungsten, Green
(1) Eastwood Instruction Manual

Guides & Accessories

Instructions

Click here for product instructions.

Safety Information

Always follow manufacturer's instructions for proper safety requirements when performing welding tasks.

Accessories

What is High Frequency Start for TIG welding?

High Frequency Start (HF) allows the operator to position the tungsten electrode near the metal to be welded and simply press the torch trigger or foot pedal to start the arc. HF is typically found on professional TIG welding machines with AC/DC function that also allows you to weld both steel and aluminum. This is a preferred method over lesser units that use a Scratch Start system that is not user friendly because it makes the operator touch the tungsten to the metal to be welded to start the arc. This makes it very difficult to maintain a good clean tungsten because it can easily stick to the material to be welded.

What does AC/DC mean in TIG welding?

DC polarity means the machine can weld steel. AC means it can weld aluminum. An AC/DC machine has the capabilities to weld both steel and aluminum and is typically the preferred machine for fabrication because of the ability to weld both materials.

Can I use a TIG Cooler with this unit?

Yes, Eastwood offers TIG Coolers for Eastwood machines and other brands. They can be found here: Eastwood TIG Coolers.

What is the best way to sharpen a tungsten?

A dedicated grinder should always be used to sharpen a tungsten. If you use a standard bench grinder that is used to grind other metals, the debris from the grinding wheel will contaminate the tungsten and create a bad arc and poor welds. We suggest a dedicated hand held Tungsten Grinder to sharpen tungstens. Tungsten Grinders can be found here:

Want Better Welds! Keep your tungsten sharp with the Eastwood Tungsten Grinder.
Click here for a Tungsten Grinder
