Eastwood MIG 90 Flux Core Welder
3 year Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Price for all checked items:
Product Overview:
Description

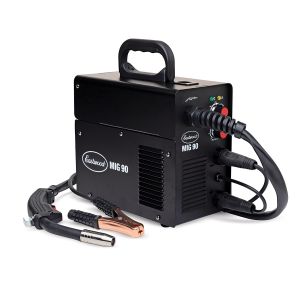

The Eastwood MIG 90 FC Welder is perfect for the beginner. The MIG 90 FC (Flux Core) variant allows you to start welding with Flux Core Wire at a great price. It has the capability to weld up to 1/8" steel and features independent Wire Speed and Output Voltage adjustment. Inverter Technology keeps the unit compact and light for easy transportation.
- Ready to Flux Core Weld out of the box (Add #67322 MIG Starter Kit when you’re ready to switch to Solid Core MIG Welding.)
- Perfect for beginners and metal fab up to 1/8"
- Operates on standard 120 volt household current
- Confidence-backed 3 Year Warranty
- Uses common consumables available at Eastwood and most supply stores
- FREE Flux-Core wire spool included
- FREE VIDEO teaching you how to MIG will be emailed after purchase (make sure you supply your email address!)

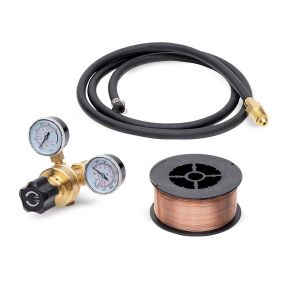

After your skills have developed and you want to level-up your results welding thin gauge sheet metal, purchase the optional MIG Starter Kit (#67322) and a MIG shielding gas cylinder (not sold by Eastwood) to begin MIG welding with Solid Wire. Setup is a breeze because the welder already has an integral gas system, quick swap polarity, and a dual-groove Drive Roller. You will be laying down high quality MIG welds in no time.
What are the Advantages and Differences Between MIG and Flux-Core Welding?
- Both are very easy to learn and portable
- Flux-Core welds better in windy conditions
- Flux-Core does not require a gas bottle
- MIG welding is cleaner with less spatter and no slag
- MIG welding is much better for thin sheet metal
- The MIG 90 FC is Setup for flux core out of the Box, But add our Mig Starter Kit (#67322) When you’re ready to switch to MIG.
Warranty
Specifications
| Input Voltage: | 120±10% VAC, 50/60 Hz, 1 Phase |
| No Load Voltage: | 56V |
| Rated Input Current (I1max / I1eff: | 24A / 12A |
| Output Current Adjustment: | 30A (15.5V) - 90A (18.5V) |
| Rated Duty Cycle: | 25% @ 90A - 60% @ 65A - 100% @ 50A |
| Wire Speed Feed: | 80 - 278 in/min |
| Maximum Material Thickness: | 1/8 Inch |
| Weight: | 14.52 lbs. (6.58kg) |
| Dimensions: | 10.75" x 5.50" x 10.75" (274mm x 140mm x 272mm) |
In the Box
Contents
(1) MIG 90 Welder with MIG Gun with 8' Cable Assembly and 0.030" Tip Installed
(1) 8' Ground Cable/Clamp Assembly
(1) Hose Clamp
(1) Handheld Welding Face Shield
(1) Shield Lens
(1) Shield Handle
(1) Shield Handle Retaining Plug
(1) Hammer Brush
(1) 0.023" Contact Tip
(1) 0.030" Contact Tip
(1) Contact Tip Wrench
(1) 2lb. Spool of 0.030" (0.8mm) Flux-Cored Wire
Guides & Accessories
Reviews
Questions & Answers
can you use gas with this welder
Hi I just purchased the mig 90 at us just watching the video and I know says you can plug in to a 120 receptacle but my question is how many amp breaker to need in your main box so that this welder will not keep trip in the breaker ?
