Eastwood Modular Light System with Underhood Bar and Tripod

Item #32400-32401-32402

Eastwood Modular Light System with Underhood Bar and Tripod
Eastwood Modular Light System with Underhood Bar and Tripod


In order to see the details of precision painting, cleaning or buffing projects, you need good lights. The battery-powered Eastwood Modular Lighting System utilizes the latest LED technology to achieve the brightest 1000-lumen light output and most efficient energy use. It has a three-function switch to do what you need for each session. Press once and release to turn the light on with high illumination, press and hold for dimming up and down or press again and release to turn off/on. The progressive dimming feature allows infinitely adjustable light output to provide only the light needed while conserving battery power.

  • Three function Switch:
    • Press once and release, On – High Illumination
    • Press and hold, Dimming up and down
    • Press and release, Off/On
  • 170-degree adjustable handle/stand with magnetic base
  • Battery power display function: 3-color, 4-segment LEDs indicate charge level
  • Durable aluminum housing
  • Interchangeable, tool-free clamp-on accessory attachment system
  • 12 Volt, 1-amp output AC wall charger with 9-foot cord
  • 12 Volt, DC automotive “lighter” type power port charger with 6-foot cord

Mechanics can set this modular shop lighting system up in many ways. It has a 170-degree adjustable handle and stand with a magnetic base to stabilize it on metal surfaces. We also include a tripod and an underhood light bar for a better view of anything you’re working on. The light is protected by a lightweight aluminum housing and has segment LEDs to show the battery level. Learn more about each part of our DIY modular lighting system in the Eastwood Garage.


32400 Eastwood Modular Lighting System

(1) Eastwood Lighting System Light Module on adjustable magnetic base
(1) Wall Charger – 120V input, 12V, 1 amp output, 9 ft. cord
(1) 12 Volt DC Power Port Charger – 12V input, 12V 500ma output

32401 Underhood Bar

(2) Halves of Bracket
(1) Sliding Light Module Mount
(2) Thumb Screws

32402 Tripod

(1) Tripod
(1) Long Module Support Bar
(1) Short Module Support Bar
(5) Thumb Screws


32400 Eastwood Modular Lighting System

Battery: Rechargeable Li-Ion 7.4V 2200 Mah
Functions: On/Off and Dimmable
Brightness: On/Off = 1000 Lumen; Dimmable = 100-1000 Lumens
Runtime: 1.5hrs on High; 8hrs on lowest dimmer setting
Charge Time: 3hrs
Moisture Rating: IP65
AC Adapter: Input 120V, Output 12V; 1A, 9ft cord
DC Adapter: Input 12V; Output 12V; 500mA, 6ft cord
Dimensions: 6.7" x 6.2" x 2.2"
Weight: 1.6lbs

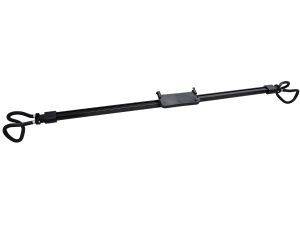

32401 Eastwood Underhood Light Bracket

Expands from 48" to 72"
Non-Marring Hooks included to protect from scratching paint
Durable Aluminum Body
Fits up to four Eastwood Modular Lighting Modules

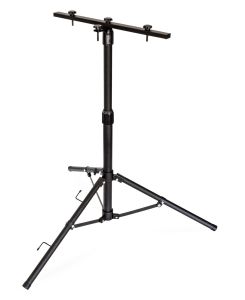

32402 Eastwood Light Module Tripod

Working Height from 25" to 60"
Sturdy 34" Foot Print to ensure stability from falling over
Holds up to three Eastwood Modular Lighting Modules
Lightweight Portable Design


Please fully read and understand the instruction manual and safety warnings on this product before use.


1 Year Warranty
