Eastwood Motorized Bead Roller Forming Dies

Eastwood Motorized Bead Roller Forming Dies

Item #21284 Brand: Eastwood

Expand the capabilities of your Motorized bead roller
Quantity:
Quantity: close

In stock

Only $349.99





< Back

Details

This kit includes an additional 10 dies to use with any bead roller with a 3/4" turned end shaft.

The Eastwood Motorized Bead Roller Forming Dies Feature:

  • Create offset flanges, contours, deep channels, and style lines
  • Use with any 3/4" shaft bead roller
  • Manufactured of CR12 steel with a Rockwell hardness of 35 HRC

With these additional dies on your bead roller you can create offset flanges, contours, deep channels, and style lines. This kit also includes a polyurethane lower “skate board” wheel, which can be used with a variety of upper dies. The dies included in this kit are inside and outside offset dies, 3/8 and 1/2 inch tipping dies, round and knife edge tipping dies, 180 degree lower die, lower edge forming die and a lower forming die. All are made of CR12 steel with a Rockwell hardness of 35 HRC.


More info...
< Back

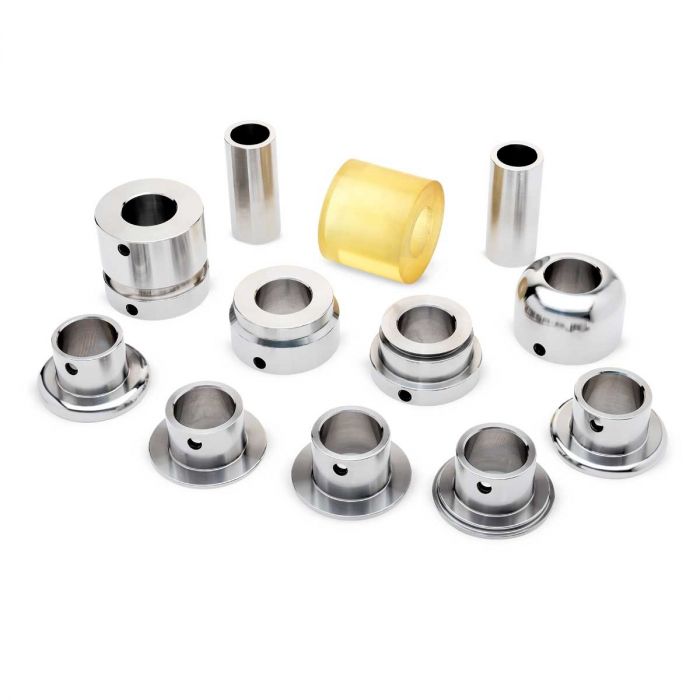

Contents

(1) Polyurethane Lower Wheel (A)
(1) 180 Degree Lower Die (B)
(1) Inside Offset Die (C)
(1) Outside Offset Die (D)
(1) Knife Edge Tipping Die (E)
(1) Lower Edge Forming Die (F)
(1) 3/8” Tipping Die (G)
(1) 1/2” Tipping Die (H)
(1) Round Tipping Die (I)
(1) Lower Forming Die (J)
(2) 1.375” O.D. x 1.025” I.D. Shaft Adapter Sleeves (K)
(10) M8-1 x 10mm Set Screws


Specifications

• Material = CR12
• Hardness = 30-40 HRC
• Will fit Bead Rollers with 3/4” shafts and 2-3/4” shaft spacing


Instructions

Click here for product instructions


Examples of metal contours that can be created with die combinations


The following images illustrate only some of the many contour configurations that can be created in metal by combining the dies in this kit. There are many more that can be created with your imagination.

A good tip is to experiment with some stiff bodied paper or chip-board that is close in thickness to the gauge of metal you wish to use. This will enable you to determine the metal contour that will result from your experimental combination without wasting metal.



Safety

Thoroughly read and understand this manual before using.


Warranty

1 Year Eastwood Warranty

Click here for the Eastwood Warranty Policy


Eastwood Offers Free Lifetime Technical Support


Click here for product SDS information


Attention California Residents - Proposition 65


Proposition 65 Warning WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
