PCS-150 Single Voltage Powder Coating Gun Starter Kit

Item #33272-11536

PCS-150 Single Voltage Powder Coating Gun Starter Kit
PCS-150 Powder Coating System PLUS Powder Coating Accessories Kit to Get You Started Today
*

The PCS-150 is a new and improved Single Voltage Powder Coating Gun that has replaced our popular Original DIY Powder Coating Gun, item 11671.

$0
OR

Details

The PCS-150 Single Voltage Powder Coating System brings the benefits of powder coating right to your home garage or shop.

  • Coat and cure in under an hour!
  • Easy to apply
  • Extremely durable finish
  • Quick color changes
  • 15,000-volt output
  • Economical
  • Minimal overspray
  • Color-Coded cables for easy setup
  • More trigger-room for additional comfort
  • Larger ground clamp
  • Clear bottle allows you to see powder color, level and fluidizing action
  • Larger internal passages for improved powder flow
  • Refined power supply for more consistent coverage and powder-build

This kit comes with the items you need to start powder coating including the powder gun, hi temp masking tape, silicone plugs, wire, extra plastic bottles, air filter and a bottle of powder to get you started. Just add compressed air and an oven for curing.

Why powder coat? Because it gives you one of the most economical, color-durable, and longest-lasting finishes available. You'll find powder-coated surfaces are far more resistant to chipping, scratches, fading, and wear than other finishes, and the color selection is virtually unlimited, with high and low gloss, metallic, and clear finishes available. And thanks to the UV resistance of many of the powders, colors stay bright and vibrant longer. Texture selections range from smooth surfaces to a wrinkled or matte finish, plus rough textures designed for hiding surface imperfections.

One 8-oz. bottle of powder (not included) covers the same area as 2-3 cans of spray paint, and clean-up is easy, since you can simply sweep-up the oversprayed powder. Contains no environmentally harmful solvents. HotCoat powder coating requires a 5-10psi compressed air source and dedicated electric oven (or toaster oven).

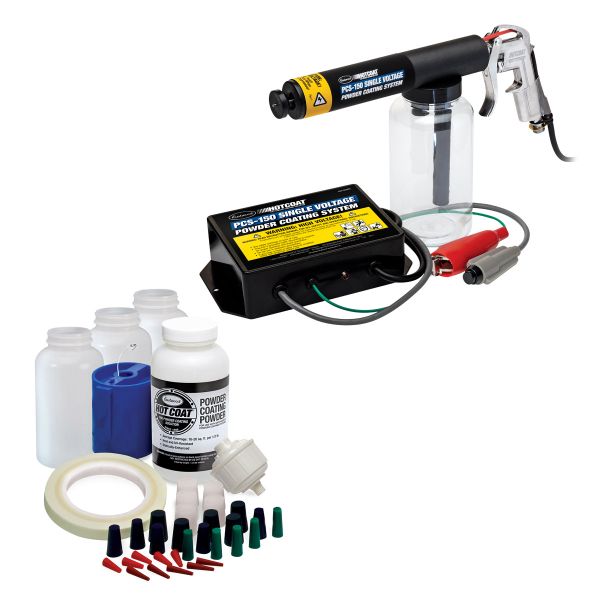

Contents

  • PCS-150 Single Voltage Powder Coating Gun
  • 1/2" High Temperature Fiberglass Masking Tape
  • (30) High Temp Silicone Plugs Assortment
  • 1 lb spool Safety Wire .041"
  • 8 ounces High Gloss Jet Black Powder
  • (3) 8 ounce plastic bottles & lids
  • Disposable In Line Air Filter


Safety

Use Disposable Dust Mask (22055) when handling or applying powder. Powder, like common flour, suspended in the air in high concentrations can be explosive. To minimize any explosion risk - sweep up, do not vacuum powder from the floor. Cure powder in a well ventilated area. The urethane powders we sell liberate a very minute amount of isocyanates when the powder flows out.This usually occurs about 3-5 minutes after the part is placed in the oven to bake. Wear a respirator, like our SAS Bandit Respirator (11455 or 11456), cartridges when curing or inspecting flow out progress.


Warranty


Product Video


FAQs

Eastwood Powder Coating Videos - CLICK HERE


Q: How long does the baking process take?

A: For improved flow out (less "orange peel"), bake coated parts at 500 degrees F until powder flows out (about 3-4 minutes for light sheet metal parts), then turn down the heat to 400 degrees F for a full 15 minutes.

Q: What are the electrical requirements?

A: This HotCoat Gun requires 110-125VAC, 2 amps at 50-60 Hz. Can be used with a voltage transformer such as 220-240VAC to 110-125VAC as long as the transformer can handle 2 amps.


Eastwood Offers Free Lifetime Technical Support


Click here for product SDS information
