FiTech Go Street EFI System Master Kit Matte Black w/Inline Fuel Pump 31002

FiTech Go Street EFI System Master Kit Matte Black w/Inline Fuel Pump 31002

Item #22168 Brand: FiTech Fuel Injection

Go Street EFI System Master Kit w/Inline Fuel Pump
Quantity:
Quantity: close

In stock

Only $1,236.40
Free Shipping on this item



< Back

Details

The Go EFI 4 with matte black finish combined with the Inline Fuel Pump Fuel Delivery Kit is rated at 600HP but is suitable for engines from 200HP thru 650HP. This self-tuning fuel injection system is perfect for your everyday Driver right up to your weekend Street Machine or Bracket Racer. It features the fastest most accurate self-learning available, timing control, wet flow annular discharge and tons of additional features.

This Fuel Injection System Features:

  • 1 BAR internal MAP sensor
  • (4) Flow matched injectors
  • Built-in pressure regulator
  • Suitable for up to 600 HP
  • (1) Fan control & AC Input
  • Matte Black finish
  • Inline Fuel Pump Fuel Delivery Kit

It fits any 4-bbl intake manifold and is the most self-contained and full-featured unit of this type. The ECU (computer) is mounted on the throttle body, which greatly simplifies installation. No hole in your firewall and no unsightly harness draped across your engine. This is also the only computer mounted throttle body that offers spark control without the need for an external spark box or special distributor. It also has a built-in fuel pressure regulator. A hand-held controller features a touch screen for quick and easy initial set-up.

The Inline Fuel Pump Fuel Delivery Kit includes an EFI grade 255 L/PH inline external fuel pump that is suitable for engines making up to 600HP. (Note that some of our EFI kits are limited to less than 750HP due to maximum usable injector sizes). This kit also includes 20-feet of EFI grade fuel hose suitable for both the inlet and return lines between the fuel tank and the engine. The kit includes two billet fuel filters. The filters include a 100-micron pre-filter and a 30-micron post filter.

Not legal for use on pollution controlled vehicles. This system is designed to be installed into vehicles that do not require emission controls.

Select The Right Fuel Injection System For Your Project

FITECH FEATURE COMPARISON CHART FOR THROTTLE BODY EFI SYSTEMS CLICK HERE

BRAND COMPARISON CHART FOR THROTTLE BODY EFI SYSTEMS CLICK HERE


More info...
< Back

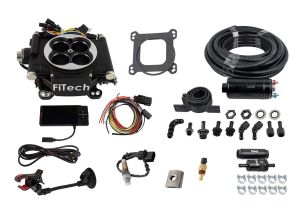

Contents

(1) Die-cast throttle body
(1) Hand-held controller
(1) Hand-held controller cable
(1) Windshield mount
(1) 4+2-Pin Connector
(1) O2 sensor
(1) O2 bung kit
(1) CTS sensor
(1) CTS adapter
(1) Mini USB cable
(1) Return plug
(1) Gasket kit

Fuel Pump Kit
• 255 LPH external inline pump
• EFI pre and post fuel filters
• 20’ of -6 fuel hose and 5’ of -8 hose & fittings
• Mounting brackets


Specifications

• Application: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, Etc. engines making 200 HP up to 650 HP with a 4-barrel intake manifold.
• Replacement for any 4-barrel carburetors for engines with 200 HP up to 650 HP.
• Use the same size air cleaner you would normally use for your 4-barrel carburetor.


Instructions

Instructions for #30003 - Click Here

Go EFI Systems Manual - Click Here

Quick Start Guide – Handheld Controller - Click Here

Handheld Controller Feature Definitions - Click Here

FiTech Throttle Body Dimensions - Click Here

Troubleshoot Guide - DOWNLOAD


Warranty

1 Year FiTech Warranty


Eastwood Offers Free Lifetime Technical Support


Click here for product SDS information


Attention California Residents - Proposition 65


Proposition 65 Warning WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
