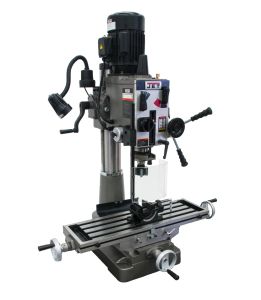

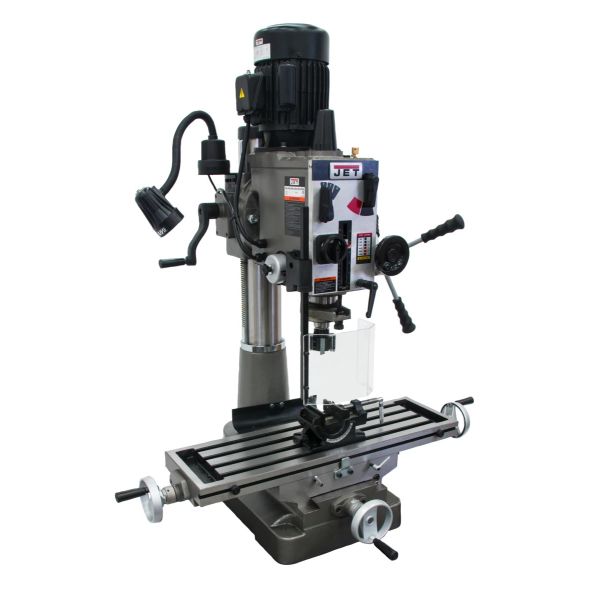

JET Tools JMD-40GH Geared Head Mill Drill 351040

JMD-40GH Geared Head Mill/Drill
JMD-40GH Geared Head Mill/Drill
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 55.02ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$4,729.00
Loading...
Loading...
Save for Later
JMD-40GH Geared Head Mill/Drill
  • 90-Day Returns
  • Technical Support
JET Tools JMD-40GH Geared Head Mill Drill 351040

Product Overview:

Description

Engineered for precision drilling, the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy.

Features

  • Calibrated fine down feed built in
  • CSA/CUS Certified
  • Easy to read internal depth gauge
  • Full power to the cutting tools through 6 speed geared head
  • Heavy-duty design allows for a variety of precision drilling applications
  • Mill Drill Stand, p/n 350045, shown in some images, is optional
  • Milling table allows for movement
  • R8 spindle allows use of all mill tooling
  • Rapid spindle speed changes through quick-select gear shift levers

Specifications

Swing (In.): 21
Spindle Travel (In.): 5
Number of Spindle Speeds: 6
Face Mill Capacity (In.): 4
Spindle Taper (In. x TPI): R-8
Max Distance Spindle to Table (In.): 15-3/4
Range of Spindle Speeds (RPM): 65, 130, 220, 480, 925, 1550rpm
Quill Diameter (In.): 3
Table Longitudinal Travel (In.): 20-1/2
Column Diameter (In.): 4-1/2
Motor (HP): 1-1/2HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.): 28 x 39-1/4 x 42-1/2
Weight (Lbs.): 694

In the Box

Guides & Accessories

Consumables

  • 55381 - JET Tools CS-18, Floor Stand For Mill/Drills 350045
  • 55338 - JET Tools CS-R8, 6-piece R-8 Collet Set 1/8" - 3/4" (8ths) 650132
  • 55361 - JET Tools CK-12, 52-Piece Clamping Kit with Tray for 1/2" T-Slot 660012
  • 55320 - JET Tools CK-38, 52-Piece Clamping Kit with Tray for 3/8" T-Slot 660038
  • 55298 - JET Tools Milling Accessory Kit 660100KT
  • 55324 - JET Tools 24- Piece Milling Tool Kit for R-8 Spindle Milling Machines 660220
