Item # 32601 BRAND: Eastwood

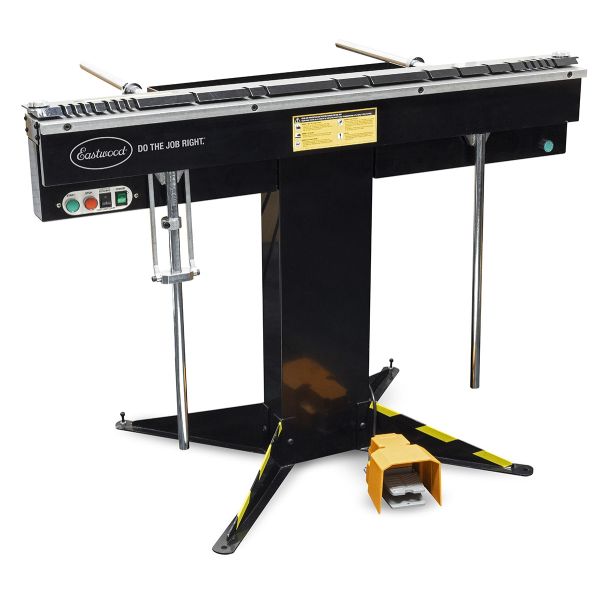

Eastwood 48 Inch Electro-Brake Sheet Metal Brake

Take your metal fabrication skills to the next level with the Eastwood Electro-Brake.
Take your metal fabrication skills to the next level with the Eastwood Electro-Brake.
Eastwood 48 Inch Electro-Brake Sheet Metal Brake is rated 5.0 out of 5 by 3.
  • y_2024, m_2, d_20, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_32601, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 4.55ms
  • REVIEWS, PRODUCT
Reg. $2,999.99 Sale $2,899.97 Save $100.02
Loading...
Loading...
Save for Later
Take your metal fabrication skills to the next level with the Eastwood Electro-Brake.

1 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Eastwood 48 Inch Electro-Brake Sheet Metal Brake

Product Overview:

Description

The Eastwood 48" Electro-Brake Sheet Metal Brake

Consistent Repeatable Accurate Bends

  • Bends up to 16 ga mild steel and 20 ga stainless
  • Six tons of consistent clamping force across entire bending surface
  • Complete set of clamping bars included
  • Sliding angle gauge with stop collar for repeatable results
  • Accepts full 48" wide sheet
  • Unlimited box depth
  • 180° rotation angle
  • Bends metal up to 140°
  • Operates on standard single phase 240 volts
  • Includes Clamping Bars to fabricate boxes, pans and trays
  • Foot pedal allows for easy hands-free operation
  • 1 Year Warranty

This machine is designed for precision metal fabrication, allowing you to make standard bends as well as boxes, pans and trays. There is no back, so depth is unlimited. It operates with push buttons or foot pedal for easy hands-free operation. The Eastwood Electro-Brake is great for metal fab shops, auto restoration, industrial art design and HVAC applications.

Eastwood 48

Warranty

1 Year

Specifications

  • Single Phase 220V
  • Accepts full 48" wide material
  • 6 Ton Clamping Force
  • Duty Cycle 30%
  • Box Depth Unlimited
  • Rotation Angle - 180 Degree
  • Max Capacity of Mild Steel and Aluminum - 16 Gauge 20 Gauge Stainless Steel (Extension bar installed)
  • Max Capacity of Stainless Steel - 20 Gauge Stainless Steel (Extension bar installed)
  • Includes 52x4" Slotted Clamp Bar
  • Includes 52x4" Solid Clamp Bar
  • Includes 52x2" Solid Narrow Bar
  • 1", 1.5", 2", 2.75", 5.5" and 11" Clamp Bars Included

Shipping & Handling

Ships via Freight

In the Box

Contents

One 48" Electro-Brake with Clamp Bars

Guides & Accessories

Instructions

Click here for product instructions.

Safety Information

Please read and fully understand the instruction manual that comes with this equipment before use

Spare Parts

32602, 32603, 32604, 32605, 32606, 32607, 32608, 32609, 32611

Reviews

Rated 5 out of 5 by from Amazing Bender Excellent tool for fabricating brackets and anything that'll fit in the span. The ease of operation is incredible and it came with all the right attachments to do most anything we need it for.
Date published: 2023-04-19
Rated 5 out of 5 by from Very capable brake This is a capable electromagnetic brake. The open top allows for great capabilities for folding a boxed in section. We have made closed rectangle, octagon and hexagon pieces without the interference a traditional brake would give. We have folded full width 16 gauge mild steel with no issue. The ability to bend a radius around a piece of steel pipe is a cool feature. Compared to the Baileigh, this one doesn't need a buck transformer to drop the 240v residential AC to 220v, which is a savings. Additionally, there was no wait (backorder) to get this one and it is cheaper than the Baileigh. Unfortunately, they are all made in China so we are hoping the unit will give years of trouble free service. The only negative is that the scale is not correct. It does bend close to a 90 degree as indicated, but a 45 degree bend needs the stop set at 35 as indicated on the scale. Not a major problem, just need to do some test bends on scrap material to find the right setting. That's a good idea anyway as the amount of spring back will vary with material, thickness and width.
Date published: 2021-04-24
Rated 5 out of 5 by from Works great Works great. Glad I went and spent the money on this unit.
Date published: 2021-01-07
  • y_2024, m_2, d_20, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_32601, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.79ms
  • REVIEWS, PRODUCT

Questions & Answers

For Radius bends, how large can the radius bends be, and how accurate are they? Since there is no bottom roller like a traditional radius brake, is the curve clean and accurate, especially with a larger radius?

Asked by: dfly
FORMING A RADIUSED/ROLLED EDGE ON A PANEL The Bender is operated as it is with “Normal, Straight Bends” however rolled edges are formed by wrapping the workpiece around a steel bar or piece of thick-walled pipe. • Reverse the orientation of the Clamp Bar so that the vertical edge is facing outward, toward the Bending Beam. • Move the Clamp Bar back from the front edge of the Base Deck distance of the pipe or bar diameter. NOTE: DO NOT exceed 3/4” diameter of bar or pipe to avoid placing it too far into the magnetic field which would diminish the effectiveness. • Place the steel bar or pipe on the Base Deck with the outer circumference flush with the front edge of the Base Deck and against the vertical edge of the Clamp Bar. • This will allow a 90° radius. To curve the material more than 90°, move the workpiece inward so that the curved material is between the bar or pipe and the vertical edge of the Clamp Bar. Link to instructions: https://www.eastwood.com/images/library/32601Q_48inch_Electro_Brake_INSTRUCTIONS.pdf
Answered by: Wil Project Advisor
Date published: 2023-11-30

Is it possible mount wheels on this tool?  I’d like to be able to move it around the shop.

Asked by: Swing42
It appears to have holes for mounting it to a floor. It may be possible to bolt wheels to it.
Answered by: GeneB
Date published: 2023-09-06

I see the unit says it can bend 16g steel but your also saying the max limit of alum is 16g. the steel is much harder to bend than alum so why 16g for both for steel and alum ??

Asked by: Andrei
You are right, but because this brake uses an electromagnet to clamp the top bar down on the material small distance increases have a significant effect on clamping force. Material thicker than 16 ga reduced the clamping force enough we were not comfortable rating it for more than 16 ga.
Answered by: Nick BC
Date published: 2023-04-04

I need to bend brass flat sheets with a notch cut where the bend is to occur. What is the maximum thickness of brass this machine can bend?

Asked by: jasonct27
We do not recommend bending anything thicker than 16 gauge.
Answered by: Nick BC
Date published: 2022-06-02

How does this unit compare to the roper/whitnen magnabend and the baileigh magnetic benders? Also since this is in close out, will replacement parts be available?

Asked by: Luke
This is directly comparable to Baileigh's 240V 48" electro brake. I only see a 120V Roper Whitney 48" model so this is significantly stronger than that. This product is not in closeout, we fully intend to continue selling this. We do have replacement parts available and have no problem backing our 1 year warranty.
Answered by: Nick BC
Date published: 2022-06-01

My unit quit working.  It’s still in warranty.  Any way to get it repaired?  Don’t want to take it apart and return it.

Asked by: Hrspwrranch
Please contact help@eastwood.com for warranty service.
Answered by: Nick BC
Date published: 2022-05-27

What is the weight of the heaviest one solid piece component, as delivered? I'm looking to see what I would need to do to transport this unit from the delivery truck to the house.

Asked by: PeterD
The main body of the unit is by far the heaviest piece - it has the electro magnet and base for bending. I would guess it weighs at least 200 lbs. It could be moved with a hand truck.
Answered by: Nick BC
Date published: 2022-05-27

Will this work with a 1-Phase Buck/Boost Step-Up Transformer - 208V Primary - 240V Secondary - 23.4Amps - 50/60Hz or do I need more current Buck and Boost Transformer - 208V Primary - 240V Secondary - 46.8 Amps on Secondary - 50/60Hz?

Asked by: Mark
This will work with a 23.4 amp buck boost transformer.
Answered by: CodyB
Date published: 2022-05-17
