Item # 20464 BRAND: Eastwood

Eastwood B40 Modular Blast Cabinet

Medium sized, use anywhere, Modular Benchtop or Leg Mount design.
Medium sized, use anywhere, Modular Benchtop or Leg Mount design.
Eastwood B40 Modular Blast Cabinet is rated 4.3 out of 5 by 55.
  • y_2023, m_3, d_28, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_50
  • loc_en_US, sid_20464, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 33.02ms
  • REVIEWS, PRODUCT
Reg. $399.99 Sale $359.97 Save $40.02
Loading...
Loading...
Save for Later
Medium sized, use anywhere, Modular Benchtop or Leg Mount design.

1 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood B40 Modular Blast Cabinet
main product photo
Frequently Bought Together

Price for all checked items:

Product Overview:

Description

If painting parts is in your future, do the job right with a modular blast cabinet from Eastwood.

  • Generous Internal Dimensions of 28” wide x 18” deep x 12” high
  • External Dimensions (with 9” Legs): 30-1/2” wide x 20-1/2” deep x 28” high
  • Large 22 Inch x 10.5 Inch viewing window
  • High performance blast gun
  • Electrical current requirement (lamp): 120 Volt AC, 60 Hz
  • Air supply requirements: 7 CFM @ 90 PSI

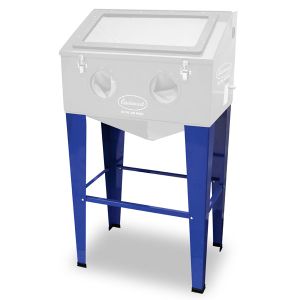

  • Convenient Bench Top use or mount to optional # 20499 Leg Kit
  • Holds 25 pounds of media
  • Holds up to 55 pounds of parts

This cabinet features a high-intensity LED work lamp for increased visibility and a baffled, flow-through ventilation design with an external vacuum connection all in a compact, space saving configuration.

Restoring that dream car of yours takes a lot of different types of tasks. Sometimes, you can completely replace a system or component. Other times, a deep cleaning is called for. Painting requires a completely clean surface, cleared of all previous paint jobs, rust and other impurities.

With the Eastwood Modular Blast Cabinet, you can use the power of sand blasting to create a perfect paint surface. This medium-sized blasting cabinet is designed to fit on a bench, or can be attached to a leg kit.

This blasting cabinet offers a spacious work area of 28-by-18-by-12 inches, and the large-top door makes it easy to place awkwardly sized components. The large viewing window, high-intensity LED light, high-performance blast gun and textured work gloves make blasting easy to get done.

Give your auto body tools a powerful addition with this hard-working blast cabinet.

Warranty

1 Year

Specifications

Electrical Current Requirement (lamp): 120 Volt AC, 60hz
Air Supply Requirements: 7 CFM @ 90 PSI.
Internal Dimensions: 28” wide x 18” deep x 12” high
External Dimensions (with 9” Legs): 31-1/2” wide x 20-1/2” deep x 28” high
Workpiece Weight Capacity: 55 lbs.
Media Capacitiy: 25 lbs.
Air Inlet Size: ¼” NPT, female
Vacuum Elbow Size: 1-1/2"
Lid Lift Mechanism: Dual gas piston
Cabinet Finish: Blue Powdercoat

In the Box

Contents

Eastwood Modular Blast Cabinet

Guides & Accessories

Instructions

Click here for product instructions


70/100 Glass Bead 100/170 Glass Bead 10/40 Ground Glass 40/70 Ground Glass 60 Grit Silicone Carbide 60 Grit Aluminum Oxide 90 Grit Aluminum Oxide 12/20 Walnut Shells

Safety Information

Always wear proper safety equipment when operating this type of equipment. Always fully read and understand the instruction manual before use.

Accessories

Application Tips



Reviews

Rated 5 out of 5 by from Awesome blue box gets the job done Great cabinet. Make sure you check the CFM's on your compressor. For it's size, it eats up capacity. Not a crack on it, it works awesome. If I was being critical, the springs on the latches are a little girlish. Vacuum size needs to be adequate too- I am still experimenting with shop vac and how fast it can clear the debris / dust out. I added a separator on a 5 gallon bucket between vac and machine that really keeps the filter clean on the vac. I am using this on a '60 CJ-5 that some clown rolled on heavy paint on every accessory he could find. I use media from FH and it gets the job done nicely!
Date published: 2023-03-13
Rated 5 out of 5 by from Cabinet works great I just bought this cabinet and set it up to blast some rusted car hinges, Cabinet works great! Zero leaks, this cabinet comes pre assembled and has less seems than the completion. No issues with glass bead and and having to shake cabinet, media seems to have no issues settling down into the pickup area. Cabinet is much higher quality than the cheaper Chinese imports.
Date published: 2022-08-17
Rated 5 out of 5 by from leg to extend the height of the bench top sand they bolted up very well and seemed to be very sturdy would recommend
Date published: 2022-03-21
Rated 5 out of 5 by from Good Choice - only a few caveats I bought this cabinet to clean numerous parts during cart restoration as well as use it at work.in my rental equipment shop. I wanted something that could be placed on a benchtop because our floor space was limited and this unit fits the bill perfectly for that application. It does an excellent job of cleaning. I use a shop vac for the vacuum and it runs easily off a 5 HP air compressor. As good as it is I highly recommend that you upgrade to the B60 cabinet if you have the floor space. If you don't, stay with the B40 benchtop and you'll be happy. I do not recommend getting the optional tall legs to convert the B40 into a free standing model. Just upgrade to the B60 instead and you'll be better off. Here's why: While the B40 is a decent sized cabinet there were times that I could have used more width for larger pieces. The B60 would have been perfect. Because the B40 is a benchtop unit it has a fairly shallow slope to the bottom pan so that you don't need to stand on a step stool to see in the window. The pan tapers down to the center, where the sand pickup hose is located. After a bit of blasting, the media sticks to the upper areas of the floor plan and the sand pick up hose just sucks air. If you bounce the cabinet a bit some sand falls down into the valley and you can start blasting again but you may have to do that every 2-3 minutes, which is annoying. Otherwise you shut it down, open the lid and scoop all the media down to the center again and restart your blasting job. The B60 has a steeper taper so that the sand will fall; down into the hopper better. But the B60 has room to do that because it's not a counter top model so that is understandable. The B40 has a nice LED light strip at the rear to illuminate the cabinet interior. This is fine for small pieces but larger pieces tend to get shaded because the light is at the rear. and it gets hard to see what you're doing. In some cases I even rested a Milwaukee cordless LED light on the window to help shine into the front of the cabinet. The B60 has better lighting that surrounds better. Basically, the B60 gives you more interior space, better sand droppage into the hopper and better lighting for not that much more money. Both are good units and built well. When I make my new shop I'll order a B60 but if you need a benchtop style cabinet, you won't beat the B40.
Date published: 2022-03-09
Rated 5 out of 5 by from Bead blast cabnut This blast cabinet works great, perfect for smaller to medium sized jobs.
Date published: 2021-12-09
Rated 5 out of 5 by from Great cabinet for smaller shops! Came together other than the legs. Everything was sealed up with no leaks. Works as what you would expect.
Date published: 2021-12-02
Rated 5 out of 5 by from Nicde unit. I haven’t used it yet… I need mobile tools in my shop so I would pay extra for a welded stand on wheels for this unit or for wheels on your leg kit. I had to build one out of lumber. It will work but one of yours, powdercoated would be nicer. Give me an email address and I’ll sen d pictures of what I built.
Date published: 2021-11-02
Rated 5 out of 5 by from MAKES THE CABINET BETTER GREAT! THE RIGHT HEIGHT WANTED THE CABINET OUTSIDE TO KEEP DUST OUT OF SHOP FOUND WATERPROOF BBQ COVER THAT FIT PREFECT
Date published: 2021-09-28
  • y_2023, m_3, d_28, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_50
  • loc_en_US, sid_20464, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 31.78ms
  • REVIEWS, PRODUCT

Questions & Answers

Can you use smaller nozzle than what comes with this unit? Like a 1/16 nozzle

Asked by: T144
Eastwood Replacement Abrasive Blasting Nozzles Replacement Nozzle Set for Eastwood Blast Cabinet One each of: 0.16" diameter- Min 7 cfm @ 90 psi 0.19" diameter- Min 7 cfm @ 90 psi 0.25" diameter- Min 11 cfm @ 90 psi 0.28" diameter- Min 14 cfm @ 90 psi
Answered by: GeneB
Date published: 2023-03-24

What size air compressor should I use with this blaster

Asked by: Hoppy
I have a Craftsman 33 gal., 1.7 HP, maximum 165 psi air compressor and it works great with this unit.
Answered by: itsallgood
Date published: 2023-02-27

Where can I get a new light bulb

Asked by: Dave
Replacement lights can be found here on our website: https://www.eastwood.com/eastwood-light-assembly.html
Answered by: Kelly H
Date published: 2022-07-20

What size is the Nozzle Orifice?

Asked by: Matt
This unit will come with 1) 0.16" diameter- Min 7 cfm @ 90 psi 1) 0.19" diameter- Min 7 cfm @ 90 psi 1) 0.25" diameter- Min 11 cfm @ 90 psi 1) 0.28" diameter- Min 14 cfm @ 90 psi
Answered by: ZachC
Date published: 2022-12-04

What size air hose goes to blast gun? 1/4 or 3/8?

Asked by: Jim G
This will be a 1/4" NPT.
Answered by: Kelly H
Date published: 2022-02-09

Is this one piece welded together upper cabinet or panels you have to bolt together to make cabinet?

Asked by: cuda
Some assembly is required as this is multiple components. This can be viewed in the instructions listed on the website on pg. 3. I will also link these here: https://www.eastwood.com/images/pdf/20464Q_inst.pdf
Answered by: Kelly H
Date published: 2021-12-22

Can you use soda in this cabinet?

Asked by: Jim G
These blast cabinets are designed for use with Abrasive medias that are 60 grit or finer (60 or higher) only. Soda should not be used within them.
Answered by: Kelly H
Date published: 2021-12-02

would this unit be recommended for use on firearms for the purpose of refinishing or would recommend a smaller unit?

Asked by: Titofrito
There is not a difference function wise between the sizes of these units we sell. The main difference is the internal working dimensions. As long as the firearm or part you are blasting fits within the cabinet and you use appropriate media- you could utilize any of these options.
Answered by: Kelly H
Date published: 2021-07-25
