Powermatic PM1300TX-BK Dust Collector 1.75HP 1PH 115/230V 30-Micron Bag Filter Kit 1791078K
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description

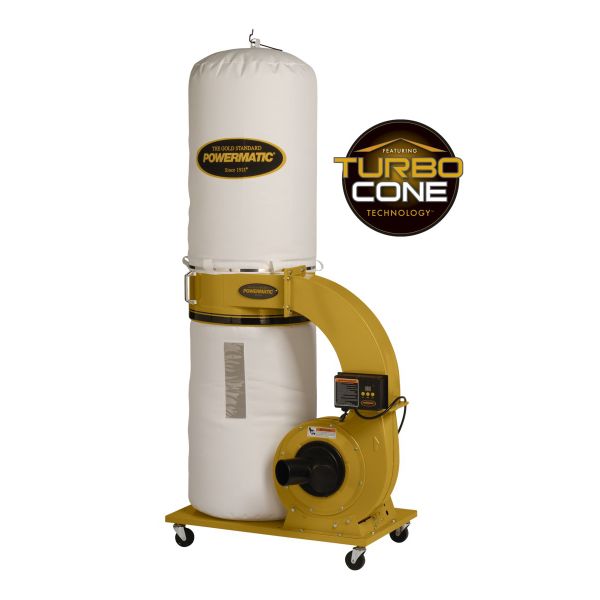

The PM1300TX Dust Collector features the exclusive TurboConeâ„¢ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.
Features:- TurboConeâ„¢ improves chip separation and collector bag packing efficiency
- The large steel impeller is powered by a 1-3/4HP motor for peak performance
- Remote-controlled digital timer can be programmed for up to 99 minutes
- The cone eliminates premature filter clogging for sustained performance
- All-metal duct construction for rigidity and improved air flow
- Dual 4" dust ports for simultaneous collection from two machines
- Cloth collection bag with view window uses snap ring for rapid installation/removal
- 10 cubic feet capacity collection bag reduces number of bag changes
- Four swivel casters for easy maneuverability
Specifications
1-Hose Connection Diameter (In.): | 6 |
2-Hoses Connection Diameter (In.): | 4 |
Bag Diameter (In.): | 20 |
Collection Bag Length (In.): | 30 |
Efficiency (Micron): | 30 |
Filter Bag/Canister Length (In.): | 48 |
Gross Weight (Lbs): | 150 |
Impeller Diameter (In.): | 12 |
Impeller Fins: | 6 |
Impeller Material: | Steel |
Motor Amps: | 18/9 |
Motor Phase: | 1 |
Motor Power (HP): | 1-3/4 |
Motor Voltage (V.): | 115/230 |
Net Weight (Lbs.): | 140 |
Overall Dimensions (L x W x H) (In.): | 37 x 29 x 79 |
Prewired Voltage (V.): | 115 |
Prop 65: | Cancer and Reproductive Harm |
Sound Rating (Db.): | 75-90 |
Static Pressure (Wc.): | 11.31 |
Style (Type): | Dust Collector |
