QuickJack 5000TL-110V with Wall Hangers Set and Pinch Weld Blocks Set Lift 5175352
Manufacturer Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description
QuickJack 5000TL-110V Pinch Weld Vehicle Lift Features:
- 5,000-lb. lift capacity
- 24-inch maximum height
- 70-inch frame length
- Special blocks for vehicles with unibody and pinch weld frames
- Automatic dual-position safety bars
- Push-button pendant control operation
- Requires 110-volt power supply
- One-year manufacturer’s warranty

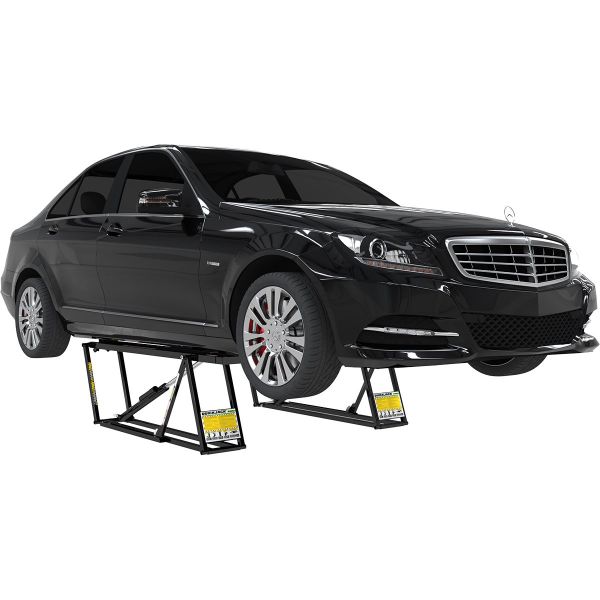

Get a car ready for service work in only 30 seconds with a QuickJack 5000TL Portable Car Lift. Many modern vehicles have a unibody design or other type of pinch weld frame that can easily get damaged if too much stress is placed on the body rails. This kit includes a set of four cross-slotted pinch weld blocks that distribute these forces across a larger area so no single point is overworked. When you elevate a unibody passenger car or light-duty truck, you can be confident the rails and rocker panels will handle it just fine.
Beneath this feature, the QuickJack 5,000-Pound Vehicle Lift is everything else you could want in a hydraulic jack system. It has automatic safety locks at mid-rise and full-rise, one-handed operation, 110-volt power compatibility and a slim 3-inch lowered height. Slide it into the trunk for transport or hang your lift on the wall using the included mounts. Eastwood has supported DIYers with a 100% customer satisfaction guarantee since 1978.
Specifications
Lifting Capacity: | 5,000 lbs. |
A - Lowered Height (Frame Only): | 3" |
B - Lowered Height (W/ 2" Block): | 3.5" |
C - Frame Only: | 17.6" |
D - Lifting Height (W/ 2" Block): | 21" |
E - Lifting Height (W/ 3" Block): | 22" |
F - Max. Height: | 24" |
G - Lifting Height (W/ Adapters): | 24" |
H - Lifting Height (W/ Adapters + Pin): | 26.75" |
I - Lift Point Spread (Max): | 60" |
J - Lift Point Spread (Min): | 37" |
K - Frame Width: | 11" |
L - Frame Length: | 70" |
Frame Weight: | 78 lbs. |
Time To Full Rise: | 30 seconds |
Power Unit Weight: | 15 lbs. |
Shipping Dimensions (ea. frame): | 73.5" (L) x 15.25" (W) x 5" (H) |
Total Shipping Weight: | 240 lbs. |
Package Includes: | Lift, Wall Hangers Set and Pinch Weld Blocks Set |
In the Box
Contents
- 5000TL Left Frame Assembly
- 5000TL Right Frame Assembly
- 1x Hydraulic power unit with control
- 4x Medium rubber lift blocks (2")
- 4x Tall rubber lift blocks (3")
- 2x Short hydraulic hoses
- 2x Long hydraulic hoses
- 2x Frame-positioning handles
- Wall Hangers Set
- Pinch Weld Blocks Set
- Fittings and thread tape for setup
- Instruction manual
