Item # 59688 BRAND: QuickJack

QuickJack 7000TLX-220V with Wall Hangers Set and SUV Adapter Set 5175421

7000 Lb. Capacity Portable Car Lift Extended 220V with Wall Hangers Set and SUV Adapters Set
7000 Lb. Capacity Portable Car Lift Extended 220V with Wall Hangers Set and SUV Adapters Set
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 4.49ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$2,131.00
Loading...
Loading...
Save for Later
7000 Lb. Capacity Portable Car Lift Extended 220V with Wall Hangers Set and SUV Adapters Set

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
QuickJack 7000TLX-220V with Wall Hangers Set and SUV Adapter Set 5175421

Product Overview:

Description

QuickJack 7000TLX-220V Portable Truck Lift Features:

  • 7,000-lb. capacity
  • 66-inch lift point reach
  • SUV adapters add extra height for large vehicles
  • Automatic safety locks
  • One-handed operation
  • 76-inch frame length
  • Requires 220V power supply

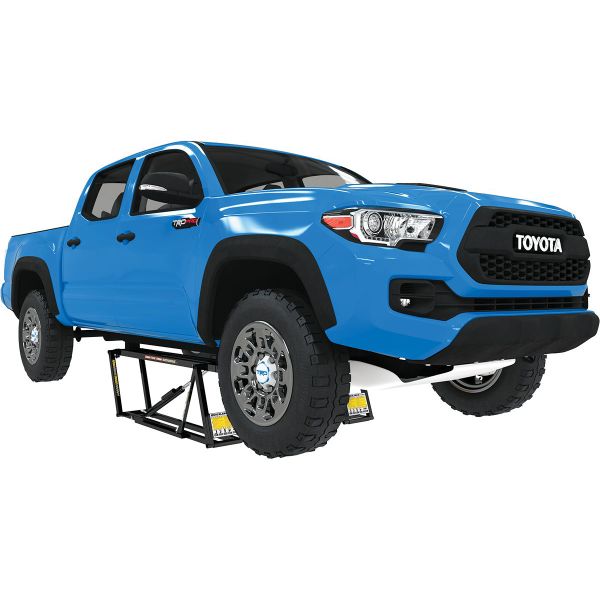

If you own a super-sized vehicle, you’ll need a super-sized lift to Do the Job Right. The QuickJack 7000TLX-220V is a heavy-duty extended vehicle lift designed for trucks, SUVs and classic full-size cars. It has a higher lift point and longer frame length (76 inches) than the standard TL Series lift while maintaining an impressive 7,000-pound capacity. The included SUV adapters give you versatility for a larger fleet. Even with the larger construction, the 7000TLX portable car lift takes just 30 seconds to reach its maximum height and has a folded profile of merely 3.5 inches.

Users only need one hand to operate the pendant control, making it even easier to get vehicles off the ground. This QuickJack truck lift comes with a set of wall storage hangers — and it slides under the seats or into the bed for transport. By owning this high-capacity 220V vehicle lift, you can do things that were previously only possible with a fixed two-post or four-post lift. QuickJack backs their lifts with a one-year warranty, and by shopping at Eastwood, DIYers also receive a 100% customer satisfaction guarantee.

Specifications

Lifting Capacity: 7,000 lbs.
A - Lowered Height (Frame Only): 3.5"
B - Lowered Height (W/ 2" Block): 3.75"
C - Frame Only: 18.2"
D - Lifting Height (W/ 2" Block): 21.5"
E - Lifting Height (W/ 3" Block): 22.5"
F - Max. Height: 24.5"
G - Lifting Height (W/ Adapters): 24.25"
H - Lifting Height (W/ Adapters + Pin): 27"
I - Lift Point Spread (Max): 66"
J - Lift Point Spread (Min): 43"
K - Frame Width: 12.5"
L - Frame Length: 76"
Frame Weight: 103 lbs.
Time To Full Rise: 30 seconds
Power Unit Weight: 15 lbs.
Shipping Dimensions (ea. frame): 73.75" (L) x 16.75" (W) x 6.25" (H)
Total Shipping Weight: 304 lbs.
Package Includes: Lift, Wall Hangers Set and SUV Truck Adapters Set

In the Box

Contents

  • 7000TLX Left Frame Assembly
  • 7000TLX Right Frame Assembly
  • 1x Hydraulic power unit with control
  • 4x Medium rubber lift blocks (2")
  • 4x Tall rubber lift blocks (3")
  • 2x Short hydraulic hoses
  • 2x Long hydraulic hoses
  • 2x Frame-positioning handles
  • Wall Hangers Set
  • SUV Truck Adapters Set
  • Fittings and thread tape for setup
  • Instruction manual

Guides & Accessories

Consumables

  • 59684 - QuickJack 7000 Series Crossbeam Adapter 5215866
  • 59683 - QuickJack Motorcycle Lift Platform with Front Wheel Vice Motorcycle Lift Kit 5150007
  • 59682 - QuickJack Motorcycle ATV Lift Platform with Front Wheel Vice Motorcycle ATV Lift Kit 5150006
  • 59675 - QuickJack Urethane Pinch-Weld Puck Set of 4 Pinch-Weld Puck 5300011
  • 59681 - QuickJack QuickJack Wall-Mount Storage Hooks 5210199
