Stewart Warner offers various sensors, senders, switches, panels, light kits, and more to ease the addition or the servicing of existing gauges in your vehicle. Each component performs with great accuracy and reliability to provide years of service.
Reliability for more than 20-million cycles
A Phosphor bronze wiper with nickel-silver contact provides extended life under fuel sloshing, vibration, and dither conditions
The extended float arm support is resistant to side-to-side movement from fuel slosh
The Solid Lifecell float will not sink
Copper alloy hardware is used throughout for extra durability
NOTE: 1 - Fuel sender installations support either a right hand (RH) or left hand (LH) configuration. Fixed arm senders may be available for a custom solution.
Gauge Note 4:
NOTE: 2 - Custom units available for isolated ground, consult with salesperson.
Gauge Note 5:
For other sending unit options, please see Fuel Sender section.
Gauge/Item Name:

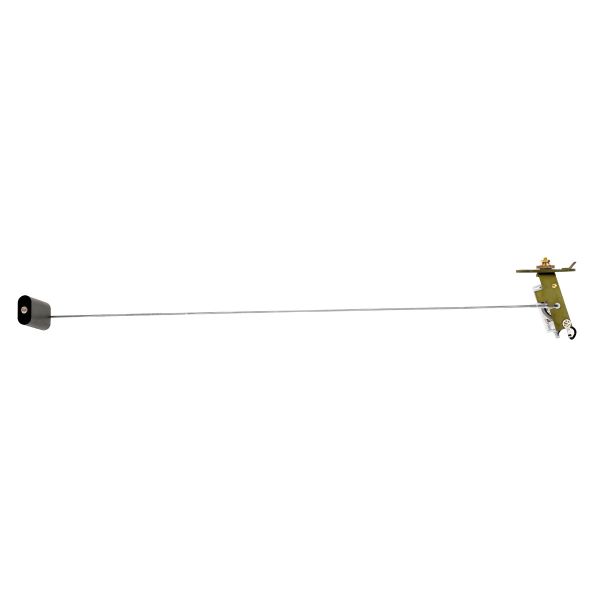

Fuel Level Sensor
Gauge/Item Type:
Sensor/Sender
Type Description:
Thick Film (Float Arm Type) Fuel Sender
Ground Type:
Common (Stud)
Ohms:
240-33.5 Ohms
Prop 65 Yes/No:
Yes
Tank Depth:
4.5-24 in.
Notes:
Tank depth, 4 1/2"-24".For use with gasoline or diesel.Has spade terminal ground.SAE 5-hole mounting.
*Note: Specifications are approximate and subject to change.
