Item #
62256
BRAND: Stewart Warner

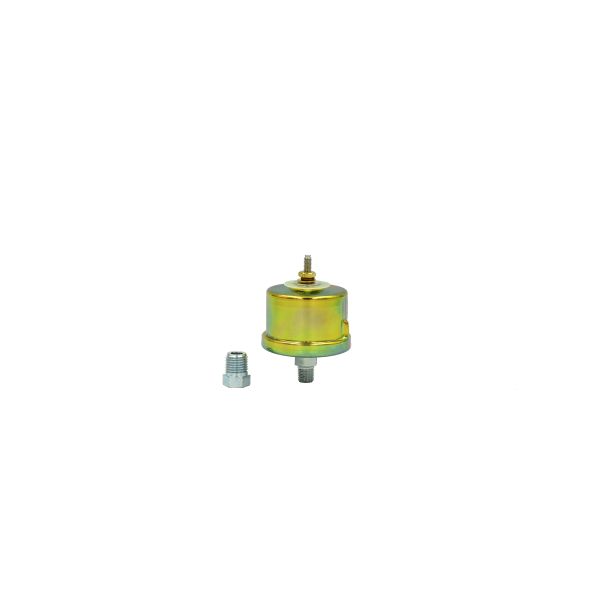

Stewart Warner Sender Press Kit 82504-F
Pressure Sender
Pressure Sender
Pressure Sender
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
Stewart Warner offers various sensors, senders, switches, panels, light kits, and more to ease the addition or the servicing of existing gauges in your vehicle. Each component performs with great accuracy and reliability to provide years of service.
- The thick film provides 5X longer life than senders with wire-wound resistors
- Kapton high-temperature plastic diaphragms are sealed with Viton gaskets for tighter and greater protection against oil leaks
- 12 V normal operating range ( can be used in circuits up to 36 V with voltage adapter)
- Suitable for any mounting orientation
- Operating temperature: -40 degree F (-40 C) through 300 degree F (149 C)
Specifications
| Connector Type: | 1 (Post/Nut) |
| Gauge Line: | Deluxe |
| Gauge Note 3: | NOTE: 1 - Use tubing kit P/N 82553-F (6 ft.) or 366HM-F (16 ft.) with mechanical pressure gauges. |
| Gauge Note 5: | For other sending unit options, please see Pressure Sender section. |
| Gauge Note 6: | All gauge kits above include gauge mounting hardware. |
| Gauge Note 7: | 12V or 24V light kits are sold separately. These are available for 5/8 in. and 1/2 in. light holes, in single-wire (grounds to gauge case) or two-wire (when ground cannot be made via gauge case) configurations. Please see Accessories section for list of available light kits. |
| Gauge/Item Name: | Multi Purpose Pressure Sensor |
| Gauge/Item Type: | Sensor/Sender |
| Type Description:: | Heavy Duty - Thick Film |
| Ground Type: | Stud Termination |
| Ohms: | 240-33.5 Ohms |
| Prop 65 Yes/No: | Yes |
| PSI: | 15 psi |
| Thread Size: | 1/8 in. PT |
In the Box
Guides & Accessories
Reviews
Questions & Answers
Stewart Warner Sender Press Kit 82504-F
$62.99
In Stock
