Item # 13689 BRAND: Eastwood

Eastwood Plasma Cutting Guide

Easily cut straight lines, curves, radii and circles
Easily cut straight lines, curves, radii and circles
Eastwood Plasma Cutting Guide is rated 4.3 out of 5 by 39.
  • y_2024, m_3, d_17, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_4, tr_35
  • loc_en_US, sid_13689, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 61.01ms
  • REVIEWS, PRODUCT
$59.99
Loading...
Loading...
Save for Later
Easily cut straight lines, curves, radii and circles

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Eastwood Plasma Cutting Guide

Product Overview:

Description

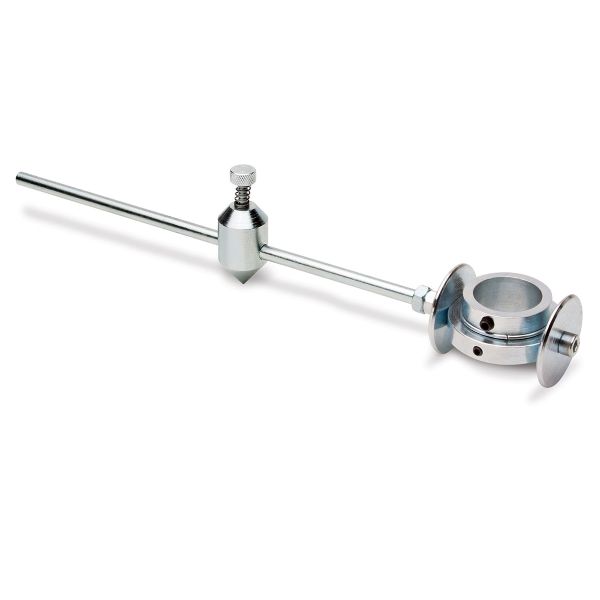

This Eastwood Plasma Cutting Guide allows for easy cutting of straight lines, curves, radii, and circles with minimal finishing.

  • Circle attachment cuts 3 3/4" to 17" diameter circles
  • Specifically designed to fit the Eastwood Versa Cut Plasma Cutter
  • Will also work on other torches with a 0.95 Inch Nozzle

The versatile center mount allows you to center the cutting guide for circles and radii using either a punch or drilling a hole.

In the Box

Contents

Includes Eastwood's Plasma Cutting Guide with Circle Cutting Attachment

Guides & Accessories

Instructions

Safety Information

Always wear approved eye protection and gloves. Do not use around flammable materials. Refer to your Eastwood Plasma Cutter Instruction Manual for additional safety information.Do not touch Plasma Cutting Guide with bare hands while in use!Plasma Cutting Guide may become hot with use, handle carefully with gloves.

Accessories

Eastwood Plasma Cutting Guide Air Plasma Cutter Torch Circinus Roller Guide Wheel Compass

Application Tips

Circle Attachment Cuts 3 3/4 in. To 17 in. Diameter Circles

Reviews

Rated 5 out of 5 by from Use Fairly easy to use. Need to practice on scrap piece first
Date published: 2022-05-07
Rated 5 out of 5 by from Great Products Eastwood Products are some of the best tools on the market
Date published: 2022-04-14
Rated 5 out of 5 by from This product at a great price. I purchased this product on sale for a very good price and I am very pleased with it. Good quality and good design. Makes my plasma cutter more versatile and user friendly.
Date published: 2020-01-07
Rated 5 out of 5 by from Works great! Worked great right out of box,takes a little getting used to,but cuts perfect after a little practice.
Date published: 2018-05-25
Rated 5 out of 5 by from Awesome for precious cuts Awesome for all my fabrication work on cars motorcycles. Pick up one today and experience how great it works yourself.
Date published: 2017-08-23
Rated 5 out of 5 by from Great Product I bought this item about two weeks ago. The plasma cutter guide worked well right out of the box. Cuts perfectly straight lines and perfect circles just as advertised. Keep up the good work Eastwood.
Date published: 2016-06-15
Rated 5 out of 5 by from Just what I need Bought this for my Hobart 250 ci plasma cutter. This will work for it if you modify the plastic tip where the guide goes on the plasma cutter. There is a smaller diameter part of the plastic tip then a wider part. All you need to do is use a dremel with a sander. Sand all the way around the wider part of the plastic until the guide will fit. It works great for my first trial and cut a circle. Now I can't cut straight and do circles, makes things easier. Expensive for a simple design. But worth it by not trying to make something that might not work.
Date published: 2016-05-22
Rated 5 out of 5 by from I should Have Invented This Years Ago! After upgrading my antique plasma cutter with an Eastwood model, I saw the video and decided the guide was worth a shot. This is the best accessory ever! Watch the video! A beginner really could follow a line drawn with a marker and get a perfect cut every time! Best of all it maintains the perfect distance from the work-piece for optimum cuts and prolonged tip life. I love it!
Date published: 2016-02-05
  • y_2024, m_3, d_17, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_4, tr_35
  • loc_en_US, sid_13689, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 21.87ms
  • REVIEWS, PRODUCT

Questions & Answers

Will it fit Eastwood versa 40?

Asked by: Too tall
Yes, this will fit our Plasma 40 unit
Answered by: Kelly H
Date published: 2023-03-22

Will this fit the Harbor Freight Plasma Cutters?

Asked by: Just a guy
We can not verify fitment for brands we do not sell but this will also work on other torches with a 0.95 Inch Nozzle.
Answered by: Kelly H
Date published: 2023-03-22

Does this work with the versa cut 20?

Asked by: Jackofall
No, the Eastwood Plasma Cutting guide (13689) will not work with the Eastwood Versa Cut 20
Answered by: vince
Date published: 2023-03-22

Will this fit a 40xt miller plasma cuter?

Asked by: 505Joel
The Eastwood Plasma Cutting Guide is designed to fit a cutting torch with a 0.95" (24mm) nozzle. As we do not have access to Miller torch specifications we recommend you measure your Miller 40xt cutting nozzle and compare to the above mention measurments.
Answered by: vince
Date published: 2023-03-22

I have a older pak master 38xl made by thermal dynamics. Will this fit on my torch ?

Asked by: Popeye1950
We can not guarantee compatibility with any brands other than our own. This was designed for our machines which utilize a CB70 style torch.
Answered by: Kelly H
Date published: 2023-03-22

Will fit Miller 375 x treme ice 27t torch

Asked by: Sas1
We can not guarantee compatibility for a brand we do not sell. This is designed to fit a CB70 style torch.
Answered by: Kelly H
Date published: 2023-03-22

Will there be an option of a magnet for rotating position? Would be great in some conditions instead of the punch mark.

Asked by: Izonme13
At this time we don't have any plans for a magnetic version.
Answered by: Scott C
Date published: 2023-03-22

Will your guides work for scratch start plasma cutters?

Asked by: Victor
These guides will not work on scratch start as the keep the tip-off the work by about 3/32"
Answered by: Bob G
Date published: 2023-03-22
