Item # 20150 BRAND: Maxx Power

Maxx Power Chevy Style Tri Flow Aluminum Radiator 22 Inch

Special 3 pass design for Chevrolet motors, produces temps up to 24 degrees lower than other aluminum radiators
Special 3 pass design for Chevrolet motors, produces temps up to 24 degrees lower than other aluminum radiators
Maxx Power Chevy Style Tri Flow Aluminum Radiator 22 Inch is rated 4.7 out of 5 by 57.
  • y_2023, m_3, d_20, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_57
  • loc_en_US, sid_20150, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 20.93ms
  • REVIEWS, PRODUCT
$249.99
Loading...
Loading...
Save for Later
Special 3 pass design for Chevrolet motors, produces temps up to 24 degrees lower than other aluminum radiators

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Maxx Power Chevy Style Tri Flow Aluminum Radiator 22 Inch

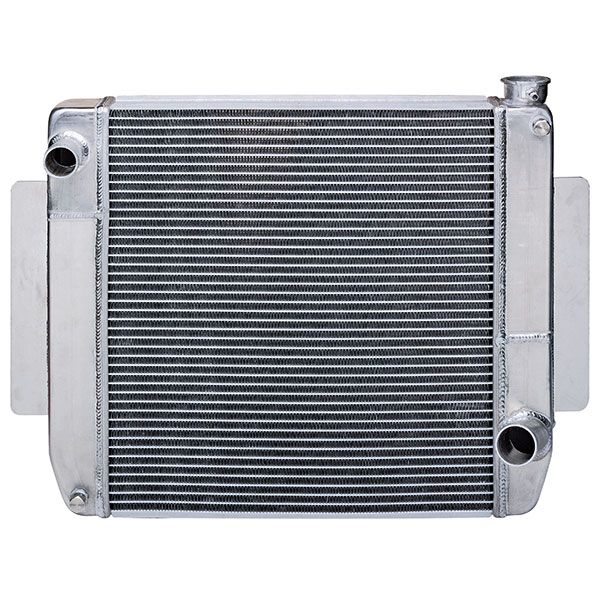

main product photo
Frequently Bought Together

Price for all checked items:

Product Overview:

Description

Maxx Power Tri Flow Radiators are designed to eliminate your overheating issues. Temperature reductions of up to 24 degrees F over your current temp are not uncommon. Independent lab tests with LS motors have shown 20 degrees F drop in temp over conventional aluminum radiators and even more over OE copper/brass.

  • Designed to eliminate overheating issues
  • Temperature reductions of up to 24 degrees F
  • Fully TIG welded 6061 aluminum tanks and core
  • Unique design passes coolant though core 2x more than other radiators

It was developed with 2 rows and a 1 inch oval tube core and a unique coolant path that routes the coolant through the radiator core 3 times and increases turbulent flow while passing the coolant in front of the fan 3 times. Traditional radiators only pass the coolant 1 time in the front of the fan. This is what makes this Radiator the best on the market.

The universal design with mount tabs welded to each tank and a traditional upper 1.5 inch inlet installed on the driver side and lower 1.75 inch outlet intake on the passenger side make this ideal for muscle cars, street rods, pro touring, etc. It also has 1/4 inch NPT welded bungs with SS plugs, one located in the bottom driver side tanks for a drain and the other under the radiator cap frame for a LS steam port or temp sensor for electric fan controller. Fully TIG welded 6061 aluminum tanks and core assure long life and leak free seams.

Warranty

365 days warranty.

Specifications

  • 22 inches overall length from tank to tank
  • Radiator holds 1.3 Gallons of coolant
  • Mount tabs on each tank add another 2 inches to each side
  • Upper hose is on driver side, lower hose is on passenger side
  • Filler neck located on passenger side
  • Core thickness 2.2 inches
  • Upper hose diameter: 1.5 inches
  • Lower hose diameter: 1.75 inches
  • Overall core height: 19 inches

In the Box

Contents

(1) 20150 Maxx Power 22" Tri Flow Aluminum Radiator

Guides & Accessories

Instructions

Click here for product instructions

Click here to download product specifications.

Click here for how-to video on measuring and installation

Safety Information

Never open a radiator that the engine has been allowed to reach operating temperature. Serious injury can occur from scalding coolant or steam.



Click here to see safety products

Application Tips

Universal

Reviews

Rated 5 out of 5 by from How good is the Tri-flow radiator? Used the 26in in my Camaro, love it, it does exactly what they described. The only problem I have is the bottom hose port should be straight out instead of a 30 degree angle. Other than that works great.
Date published: 2023-01-30
Rated 5 out of 5 by from Cool Radiator looks like a great product. good quality. I have not had a chance to install it yet.
Date published: 2022-09-30
Rated 5 out of 5 by from Worth every dollar and better than a lot more expensive radiators online Very good quality radiator and easy to mount on a race car. Packaged with love not one fin was messed up when i got it.
Date published: 2022-08-06
Rated 5 out of 5 by from Awesome radiator Awesome radiator, keeps my SBC at least 20 degrees cooler than my old single pass aluminum radiator
Date published: 2022-07-18
Rated 5 out of 5 by from Maxx Power Tri Flow I had an overheating problem on an old modified Mustang. Put an oversized Maxx Power Tri Flow on it (and a truck fan shroud) and now she stays below 180 all the time. Worked great!
Date published: 2022-07-16
Rated 5 out of 5 by from 100 Good stuff Great rad fast shipping works great
Date published: 2022-05-16
Rated 5 out of 5 by from Best money I've ever spent. Keeps 383 SBC 185 degrees sitting at red light with AC on ..During hot summer time days . No way you can go wrong with this radiator.
Date published: 2022-05-08
Rated 5 out of 5 by from Racecar Radiator It fits perfect and hooked up with no problem. Eastwood did a very fast and well packaged delivery. Was very happy with the radiator and the service.
Date published: 2022-04-25
  • y_2023, m_3, d_20, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_57
  • loc_en_US, sid_20150, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 18.76ms
  • REVIEWS, PRODUCT

Questions & Answers

Your radiators are significantly smaller than the one I have in my vehicle. Mine is 33 w by 3. It appears I would be reducing the amount of water for my engine in your radiator. So your radiator would be equipped to cool efficiently with less water?

Asked by: Bob 1701
Yes it will cool better but it might not hold that much less coolant than your bigger radiator due to these being a 2 core 3 pass design.
Answered by: Sean H
Date published: 2022-08-30

Does the 22” radiator come with automatic trans cooler connections also would it keep a big block cool?

Asked by: Ratso
Yes, the connection ports are on these radiators upon arrival. These will all cool up to 500hp at a max.
Answered by: Kelly H
Date published: 2022-08-23

Can the radiator be ordered with the brackets reversed/flipped so that the mounting flanges are flush with the coolant inlet/outlet side? I need to recess the radiator into the mounting frame away from the engine. Thanks

Asked by: Brett
No, this radiator comes as-is and can not be modified before shipping out.
Answered by: ZachC
Date published: 2022-06-21

Do you have a similar radiator for 700hp?

Asked by: Chris
No, all of our TriFlow radiators are designed to handle 500HP
Answered by: ZachC
Date published: 2022-06-21

Will this work in a j2006 eep wrangler 4.0 ?

Asked by: Tom K
Unfortunately, we can not go by any specific make/ model/ year etc. These are generic options and modification is typically needed for most installs. These all cool up to 5500HP. You will need to measure your existing and match up with one of the 3 sizes in the 2 different styles that we offer. We apologize for the confusion.
Answered by: Kelly H
Date published: 2022-06-13

I am doing a LS swap in a 55 Chevy Belair. The 4 core brass radiator can’t handle the higher operating temperatures on this 6.2 L engine. These engines are reverse flow and I am curious if it matters on your radiators if it flows from the bottom up?

Asked by: Larry
Hi, Our radiators were tested using LS motor with no problems at all, given you have the proper fan shroud and fan combination .
Answered by: Jay N
Date published: 2022-06-01

What replacement radiator cap do you recommend for this? That cap that came with it leaked.

Asked by: mtondi1
Most any standard radiator cap with a 16psi rating should work fine.
Answered by: Kelly H
Date published: 2022-05-04

do they make them with trans coolers?

Asked by: stumpy
We do not make these with a built-in trans cooler but we do sell several coolers that will work with this radiator.
Answered by: ZachC
Date published: 2022-05-02
