Item # 62618 BRAND: Baileigh

Baileigh 220V 1Phase Variable Speed Inverter Driven Cold Saw CS-350EU 1002535

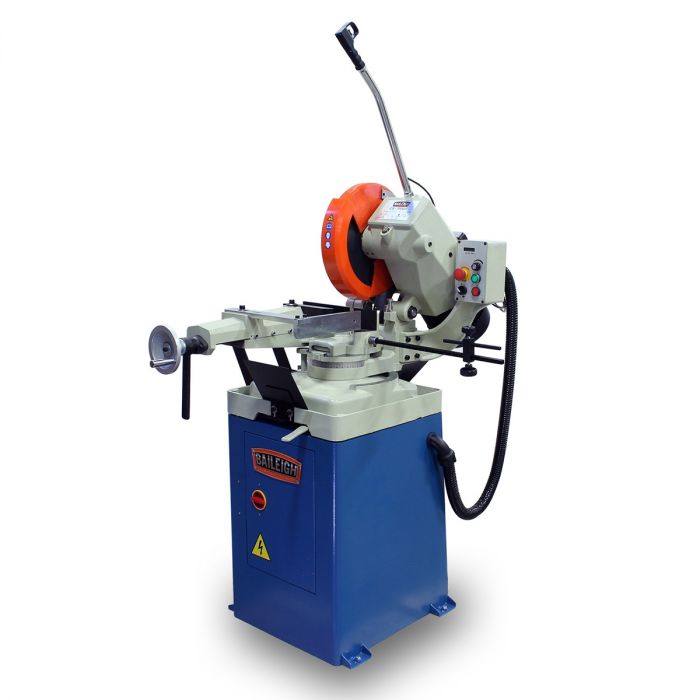

CS-350EU - Variable Speed Circular Cold Saw
CS-350EU - Variable Speed Circular Cold Saw
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 26.06ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$5,775.00
Loading...
Loading...
Save for Later
CS-350EU - Variable Speed Circular Cold Saw

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Baileigh 220V 1Phase Variable Speed Inverter Driven Cold Saw CS-350EU 1002535

Product Overview:

Description

This variable-speed manual cold saw will make burr-free cuts in larger pieces of material. The cast iron base and flood coolant system help the saw stay accurate for many years.

  • Circular cold saw takes a 14" blade (included)
  • 4.7" round tube capacity at 90-degree
  • Cold saw machine cuts through solids, tubing, and pipe
  • Miters 45-degree left and right and can slot perpendicular to the material
  • Fine-tune the variable speed from 24 to 120 rpm to improve cut quality
  • Inverter-driven motor lets you adjust the blade speed with a dial to cover most applications
  • Digital readout shows the blade speed to assist with repeatability
  • 3 hp motor, coupled to a direct-drive gearbox, allows the blade to cut through the material chatter-free, so that blades last longer
  • Runs on 220-volt single-phase power and will work in almost any shop
  • European-style vise helps increase production with a taper lock system that speeds up clamping and unclamping
  • Vise clamps on both sides of the cut to reduce chatter and increase blade life
  • Serrated jaws provide maximum hold on the material
  • Thick cast iron base, mounted on a heavy steel stand, stabilizes the saw to ensure accurate cutting for many years
  • Powerful coolant pump lubricates the blade and washes metal chips away
  • Flood coolant system allows for mill-like cuts, prolongs blade and saw lifespan, and reduces operator effort
  • Covered by a 1-year parts warranty

Recommended for:

  • Marine rails
  • Playground equipment
  • Hand railings
  • Various chassis applications
  • Other fabrication cutting jobs

Specifications

Max. Blade Diameter 14"
Operation Manual
Head Miter 45° Left / 45° Right
Round Solid at 45° 3"
Square Tube at 45° 3.5" 3.5"
Round Tube at 45° 4"
Rectangle Tube at 45° 3.5" x 2.8"
Round Solid at 90° 3.5"
Rectangle Tube at 90° 6.3" x 3.5"
Square Tube at 90° 4" x 4"
Round Tube at 90° 4.7"
Coolant System Yes
Vice Style Single Action with Cam Lock
Max. Vice Opening 6.5"
Head Style Pivot
Arbor Size 1.26"
Motor 3 hp
Capacity Round 45° 4"
Blade Speed 24 - 120 (rpm)
Power 220V / 1-phase
Shipping Weight 720lbs
Shipping Dimensions (Inches) 60x44x62

In the Box

Guides & Accessories

Application Tips

Baileigh 220V 1Phase Variable Speed Inverter Driven Cold Saw 14" Blade Diameter CS-350EU 1002535
