Item # 56713 BRAND: Derale Performance

Derale Trans Cooling Pan (Ford E4OD/4R100/5R110) 14208

Ford E4OD, 4R100, 5R110 & 5R110W Transmission Cooling Pan
Ford E4OD, 4R100, 5R110 & 5R110W Transmission Cooling Pan
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 23.28ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$205.69
Loading...
Loading...
Save for Later
Ford E4OD, 4R100, 5R110 & 5R110W Transmission Cooling Pan
  • 90-Day Returns
  • Technical Support
Derale Trans Cooling Pan (Ford E4OD/4R100/5R110) 14208

Product Overview:

Description

Description

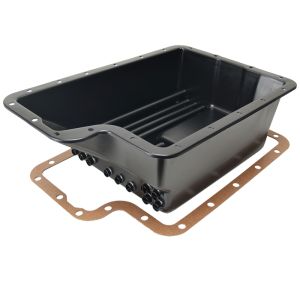

Derale's Transmission Cooling Pan #14208 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for Ford's E4OD, 4R100 and later 5R110 & 5R110W heavy duty transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Features

  • Heavy gauge stamped steel construction
  • Two stage heat dissipating black finish
  • 1/8" NPT temperature sender port
  • Reduces fluid temperatures up to 50°F
  • Increases fluid capacity by 7 qts. 30 oz.
  • Patented turbulator cooling tubes add heat transfer capability
  • Magnetic drain plug with increased magnetic strength and rubber/steel washer
  • Uses OEM filter with no filter extension required

Specifications

Pan Dimensions: 20 3/8" Length x 13 3/4" Width x 6 5/16" Height
Drain plug adds 1/4" to height
Tube depth: 4-1/4"
Temp bung size: 1/8" NPT
Drain plug size: 1/2"-20
Replacement drain plug Derale 14000
