  • DeVilbiss StartingLine Detail Gravity Gun 802405
DeVilbiss StartingLine Detail Gravity Gun 802405 is rated 4.5 out of 5 by 2.
Rated 5 out of 5 by from great gun great price i am a custom painter and air brush artist and use this gun for everything from low rider patterns, motocycles murals, bicycles, easy to clean and maintain, well worth the price, great for all levels of painters dont need to pay high prices for high end brand names, your doing the work not the gun!
Date published: 2018-03-02
Rated 4 out of 5 by from I like it Using this gun for 6 mos. now with daily use building up acrylic lacquer finish on a small product.This gun is very reliable. I don't clean it until it quits, owing to the frequency of use. I'll often go a month or more before I have to tear down and solvent clean. This is a function of the acrylic I use, the frequency of use and less than very high tolerances that mandate very thorough cleaning with your high end guns. Been there, done that, can't afford to clean guns 5-6 times a day. My finishes are wet sanded and polished, so I can't attest to the quality of a high gloss finish spray. Would I paint a car with this gun? No, but its just fine for general purpose work. Note that "touch up" generally means spot work and blending in so its not really intended for large area surfaces but very good for small stuff. CONS: The fan spray adjustment is too sensitive and often only 1/4 turn results in a huge (and unexpected) change.
Date published: 2017-11-08
  • y_2019, m_5, d_19, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_15572, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood

I am not finding manual for this gun! is the fan spray in the area if 1' to 5"? Also I see what looks like 4 adjustment knobs in stead of the normal 3. what is the extra knob?

Asked by: Gman3
https://www.autorefinishdevilbiss.com/DesktopModules/Bring2mind/DMX/Download.aspx?command=core_download&entryid=597&language=en-US&PortalId=0&TabId=86
Answered by: Kelly H
Date published: 2019-01-03

Can i get a smaller cup size for this gun?? Maybe 4 ounce or small as possible?

Asked by: Jeff si
Unfortunately we do not sell any alternate size cups for this spray gun.
Answered by: Kelly H
Date published: 2018-11-27

can you use d-kups with this gun or only the cup that comes with it?

Asked by: WLD Bill 13
You could used the Dekups with this paint gun if you purchase the DPC-64 adapter. Unfortunately we do not offer this adapter currently.
Answered by: Scott C
Date published: 2018-11-10

I realize the gun specs call for 8cfm @ 30psi. My compressor puts out 7.2cfm @ 40psi, so I am assuming at 30 psi it would put out a little more cfm. Has anyone used a compressor this size or smaller with this gun? My compressor is 27 gal, not 22 gal.

Asked by: Lloyd Peck
Your compressor is going to be under powered for this paint gun. You may want to consider our Concour Pro Detail as this only requires 3 CFM.
Answered by: S Church
Date published: 2018-08-23

I have a Craftsman 22 Gal compressor 7.2cfm @ 40psi & 5.8cfm @ 90psi. Will this compressor be enough for this gun?

Asked by: Lloyd Peck
This gun requires 8 cfm at 30@psi.
Answered by: SWhitehurst
Date published: 2018-05-24

Hi, I purchased this gun from Eastwood a couple months ago and I've used it once. I cleaned it with reducer, put approx 50ml of reducer in the cup and blew it out. I noticed that it now air leaks into the cup and the spray is erratic is this normal? help!

Asked by: chas
when you say "nozzle" what are you referring to? The air cap? The air cap is tight, the cup is tight, and the supply air fitting is tight. When I pull the trigger, air is blown/bubbling into the cup and the spray is erratic.
Answered by: chas
Date published: 2018-06-15

Is this the same detail gun that is included in Item #12505 (two-gun kit)?

Asked by: Namerow
This will be the same detail paint gun.
Answered by: S Church
Date published: 2018-12-07

I want 1.0 mm nozzle touchup waterbase gun.Can Devilbiss 802405 do the job

Asked by: Roshan
Yes, it will work well for any touch up work you need to do.
Answered by: MikeL
Date published: 2014-12-15
  • y_2019, m_5, d_19, h_22CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_9
  • loc_en_US, sid_15572, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood

DeVilbiss StartingLine Detail Gravity Gun 802405

DeVilbiss StartingLine Detail Gravity Gun 802405

Item #15572 Brand: DeVilbiss

DeVilbiss StartingLine Detail Gravity Gun 802405
Quantity:
Quantity: close

In stock

Only $135.99



< Back

Details

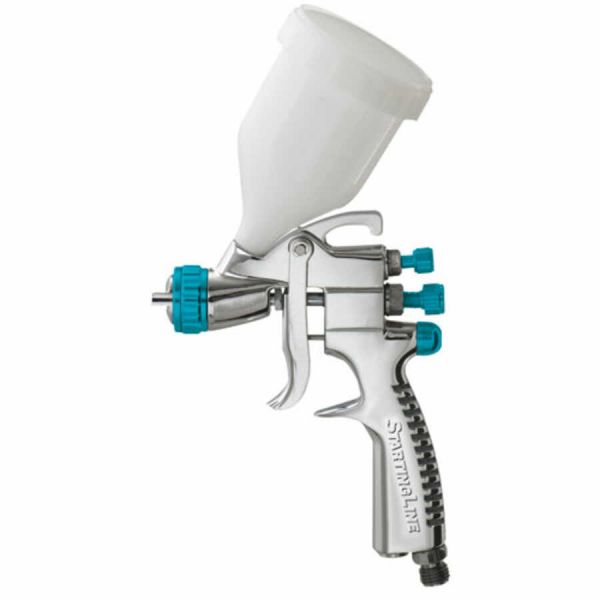

StartingLine1.0mm Detail and Touch Up HVLP Gravity Spray Gun. One Mini Size Touch Up STARTINGLINE HVLP Gravity Feed Spray Gun with a 1.0mm Fluid Tip and a 8.5 oz aluminum cup. The 1.0mm set up is suitable for Spot Repairs using a variety of Coatings. Includes Cleaning Brush and Maintenance Wrench. Includes 1 Year Limited Warranty.

More info...
< Back

Contents

One Starting Line detail gun, cleaning brush and gun wrench


Accessories

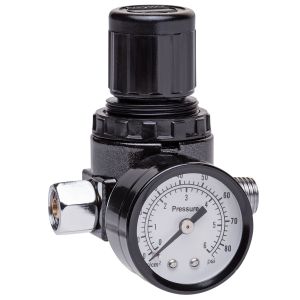

12846Z Aerosol Injected Cleaner, 15528 Devilbiss Champion Respirator, 51566 QC3 Air Dryer, 51559 Digital regulator, 20405 Paint Suit, 10041Z PRE Painting Prep, 12569 Master Gun Cleaning Kit


Safety

Always wear eye, skin and respiratory protection when painting. Paint in a well ventilated area away from open flame. Consult instructions and safety warnings in or on package.


Warranty

One year warranty, made in China


Eastwood Offers Free Lifetime Technical Support


Click here for product SDS information


Attention California Residents - Proposition 65


Proposition 65 Warning WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
