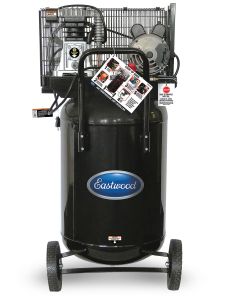

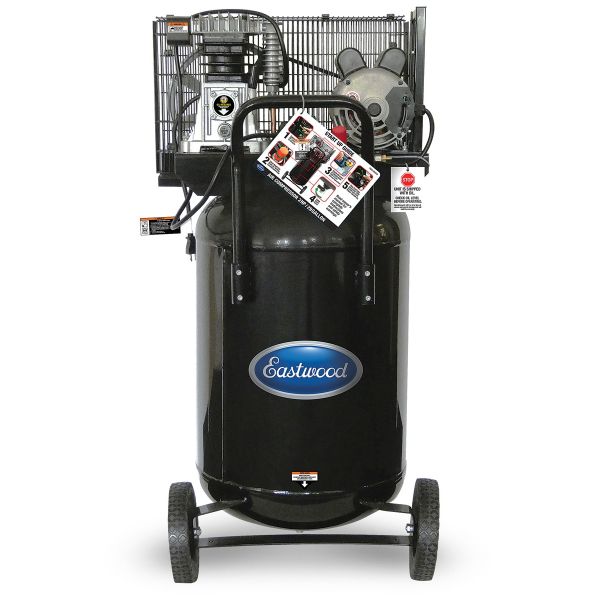

Eastwood 29 Gallon Single Stage Air Compressor

Designed with the home garage user in mind
Designed with the home garage user in mind
Eastwood 29 Gallon Single Stage Air Compressor is rated 4.3 out of 5 by 3.
  • y_2024, m_3, d_3, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_31915, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 40.58ms
  • REVIEWS, PRODUCT
$699.99
Loading...
Loading...
Save for Later
Designed with the home garage user in mind

1 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Eastwood 29 Gallon Single Stage Air Compressor

Product Overview:

Description

The Eastwood 29 Gallon Single Stage Air Compressor is specifically designed with the home garage user in mind.

  • Twin capacitor motor for easy start up
  • Motor comes with built in thermal overload protection
  • Comes with dual pressure gauges and built-in quick coupler
  • Oil lubricated cast iron pump design for extended life
  • Vertical design takes up less floor space making it easy to store in the corner of a garage or workshop.

The twin-cylinder layout delivers higher efficiency and operates at lowered sound and vibration levels, while providing sufficient air volume to operate most home hobbyist air tools and paint guns. The unique compact size fits in as little as 3 square feet and the cast-iron cylinder block offers greater reliability and longer life.

Warranty

1 Year

Specifications

Power Requirement: 120V, 60Hz, 13.8 A, Single Phase
Motor Horsepower: 2 HP
Tank Size: 29 gallon [110 liter]
Air Delivery: 5.9 scfm @ 90 psi, 7.3 scfm @ 40 psi
Cut-in Pressure: 120 PSI [8.3 bar]
Cut-out Pressure: 150 PSI [10.3 bar]
Max. Pressure: 150 PSI [10.3 bar]
Pressure Relief Valve Setting: 170 PSI [11.7 bar]
Motor RPM: 3,450
Pump RPM: 1,150
Sound Reading: @ 10 ft. [3m] = 82 dB
Power Cord: 6ft, 3-prong, grounded, 14 AWG

In the Box

Contents

(1) Eastwood 29 Gallon Single Stage Air Compressor

Guides & Accessories

Instructions

Click here for product instructions

Safety Information

Always read the instructions before using this tool.
Always follow proper safety precautions while using this tool.
Always wear proper safety equipment while using this tool.

Click here to see safety products

Accessories



Reviews

Rated 5 out of 5 by from Excellent compressor for DIY'r I wanted to paint a horse trailer and started looking for a bigger compressor. Torn between a 29 gal and an 80 gal, I drove 3 1/2 hours to the Alsip (Chicago) store and met with Gary, the sales rep at that store. Gary paired the Eastwood 29 gal compressor with the Concours LT 100 spray gun for my projects, and I couldn't be happier. To test the compressor, I filled the compressor up, ran the pressure to 130 lbs and regulated the pressure just outside the hose reel to 80 lbs. I set the gun pressure to 30 lbs. and held the LT 100 spray gun full open for one minute. The pressure at the gun never dropped below 30 lbs., the regulator at the hose reel never dropped below 80 lbs. and while the compressor ran, it maintained about 115 lbs. I highly recommend this compressor based on its ability to maintain air pressure, the quietness of the unit and the fact its oil cooled.
Date published: 2022-05-26
Rated 5 out of 5 by from Super quiet, great scfm for a 120v unit Bought this compressor the other day and so far am pleased with it. It has the ability to run any of my air tools that my smaller craftsman couldn't handle. The pulley's were not aligned properly upon delivery but that is an easy fix, just be aware as it could decrease the life of the belt. I believe painting with it should be no problem as long as i dont try to do too much at one time. Very happy with my purchase so far. The quietness of the compressor surprised me and was an added bonus.
Date published: 2021-01-25
Rated 3 out of 5 by from Not strong enough Compressor Starts refilling the tank almost immediately after starting the sander. does not appear to have enough capacity to operate the air sander continuously at a high pressure.
Date published: 2021-05-10
  • y_2024, m_3, d_3, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_31915, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 6.13ms
  • REVIEWS, PRODUCT

Questions & Answers

Is it big enough to paint a car? C3 Corvette

Asked by: Vette76
Yes, if you gun specifications are compatible with this pressure output Specifications Power Requirement: 120V, 60Hz, 13.8 A, Single Phase Motor Horsepower: 2 HP Tank Size: 29 gallon [110 liter] Air Delivery: 5.9 scfm @ 90 psi, 7.3 scfm @ 40 psi Cut-in Pressure: 120 PSI [8.3 bar] Cut-out Pressure: 150 PSI [10.3 bar] Max. Pressure: 150 PSI [10.3 bar] Pressure Relief Valve Setting: 170 PSI [11.7 bar] Motor RPM: 3,450 Pump RPM: 1,150 Sound Reading: @ 10 ft. [3m] = 82 dB Power Cord: 6ft, 3-prong, grounded, 14 AWG
Answered by: Anonymous
Date published: 2023-08-07

What are the total dimensions of this device?

Asked by: Schultz
https://www.eastwood.com/images/pdf/31915Q_inst.pdf The unique compact size fits in as little as 3 square feet.
Answered by: Anonymous
Date published: 2023-03-06

Will this compressor work with the B40 blast cabinet?

Asked by: Charles
No, This compressor has a 5.9 scfm @ 90psi and the B40 requires 7 scfm @ 90psi.
Answered by: 29 Gallon single stage
Date published: 2023-02-08

Do i need a air dryer with this compressor?

Asked by: Bobby
If you are doing something where your air needs to be very dry, such as painting or powder coating, you certainly need an air dryer system.
Answered by: Nick BC
Date published: 2022-08-01

I want to paint a horse trailer and farm implements and I'm considering the Contour 2 spray gun. Would you recommend this compressor with that gun? Thanks. And, I'm in Dubuque can I drive to your store for pickup of these tools.

Asked by: Bill 3110
We would have to advise you to call the store near you directly in regards to their inventory. Ordering from us via phone or online- the item must be shipped directly to you. This paint gun will work with this compressor, but it has a small tank capacity and will deplete itself pretty abruptly. You will have to paint section by section when doing larger items.
Answered by: Kelly H
Date published: 2022-05-05

Where is it made the air compressor 31915?

Asked by: Hubert
This unit is made overseas in China to our specs. and standards.
Answered by: Kelly H
Date published: 2022-02-01

I want to use this outside the United States can I replace the power unit with 220-240v version? or can Eastwood modify this to work on a 220-240v power? Thanks

Asked by: Dan5
Unfortunately, this unit is available in 120V, 60Hz, 13.8 A, Single Phase only. We do not have alternate options at this time in regards to this specific unit. modifications of this sort would need to be discussed with a licensed electrician.
Answered by: Kelly H
Date published: 2022-01-28

Mine is new and low on oil. What kind of oil do I need? Viscosity? Synthetic? Can’t find a spec and am inop without info… response appreciated.

Asked by: Dan53
Anygood grade of detergent free, SAE 30 Oil.
Answered by: Kelly H
Date published: 2022-05-05
