Item # 31539 BRAND: Eastwood

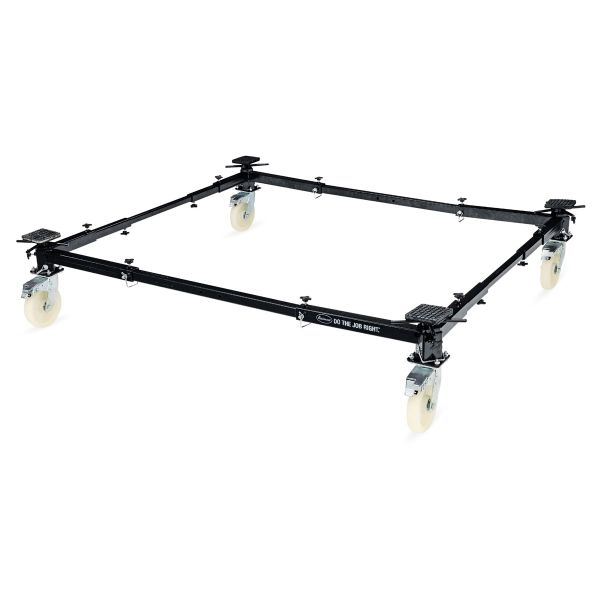

Eastwood Heavy Duty Body Cart

Eastwood Heavy Duty Body Cart will more than handle your Frame Off Restoration Needs
Eastwood Heavy Duty Body Cart will more than handle your Frame Off Restoration Needs
Eastwood Heavy Duty Body Cart is rated 3.9 out of 5 by 10.
  • y_2024, m_2, d_23, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_9
  • loc_en_US, sid_31539, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 4.65ms
  • REVIEWS, PRODUCT
$419.99
Loading...
Loading...
Save for Later
Eastwood Heavy Duty Body Cart will more than handle your Frame Off Restoration Needs

1 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
Eastwood Heavy Duty Body Cart

Product Overview:

Description

Take your body off frame restoration to the next level with the Eastwood Heavy Duty Body Cart.

The Eastwood Heavy Duty Body Cart Features:

  • Large 8" Locking Castors
  • Easily move projects around your shop
  • 2000 lb Rating
  • 20.5" Maximum height
  • Overall Extended Length - 57"
  • Overall Extended Width - 70"
  • Durable Powder Coating Finish
  • 8" nylon locking swivel casters for easy mobility
Eastwood Heavy Duty Body Cart
Eastwood Heavy Duty Body Cart Eastwood Heavy Duty Body Cart

A heavy-duty body cart from Eastwood helps you get the job done right.

If your current project requires restoring an auto body frame, you’ll need a way to prop that frame in order to do the job right. Letting it rest on the floor with uneven pressure points could cause damage, or create a wobble that makes hard work harder than it needs to be.

This heavy-duty car body stand solves that problem. It spans as wide as 57-by-70 inches to handle large vehicle bodies, and includes four 8-inch locking swivel casters for excellent mobility and positioning. The all-steel support structure of this heavy-duty cart handles up to 2,000 pounds.

The pads can be adjusted for an overall height of 19 to 20.5 inches, letting you correct for uneven frames. And the powder coating gives long-lasting protection, ensuring this heavy-duty body cart will last for as many restoration projects as you want to work on.

Warranty

1 Year

Specifications

Maximum Weight Capacity: 2000lb (908kg)
Overall Clearance Height (pads at lowest position): 19" (406MM)
Overall Extended Height (pads at highest position): 20.5" (520mm)
Assembled Body Cart Weight: 151lbs (68.5kg)
Overall Extended Length: 57" (1.45m)
Overall Extended Width: 70" (1.78m)
Tubing Construction: 2" x 2" x .125" Wall Thickness
Caster Mounts: 1/4" Thick Plate
Casters: Four 8" nylon locking swivel casters

Shipping & Handling

Shipping:

Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.

In the Box

Contents

Contains One Complete Body Cart with Casters

Guides & Accessories

Instructions

Click here for product instructions


Will need two 17mm Wrenches to complete assembly.

Safety Information

Please fully read and understand all safety precautions before assemble and use of this product.

Click here to see safety products

Reviews

Rated 5 out of 5 by from Exactly what is represented. Very pleased! Using this to move my 2003 Mustang shell around as I work on it. The uprights are very sturdy, as are the casters.
Date published: 2022-07-07
Rated 5 out of 5 by from Body cart Great cart I moved body and frame for Chevy caprice it was solid “
Date published: 2022-04-22
Rated 5 out of 5 by from Impressed with the quality This thing is well made for the cost. Easy to assemble. You can lock the wheels so that they won't swivel when you are, e.g., loading the body onto a trailer. It can get the body up high enough for you to blast or do other work on the underside. You might have to be creative to find a way to attach/fit the cart to your specific car. Notice the car in the picture has a steel tube running lengthwise resting on the cart's pads.
Date published: 2022-04-13
Rated 5 out of 5 by from Great Cart I am so happy with this car cart. I definitely recommend this cart!
Date published: 2019-07-29
Rated 4 out of 5 by from Good universal cart. Make sure you have a tap & die set handy This cart arrived much quicker than expected. The crate/packaging was good, although the crate was busting at the seams a little. A few minor raw spots in the paint. Had to tap most of the welded bolts. Ironically, even though a 69 1st gen Camaro is on the product picture, it doesn't fit as well as you'd hope. I asked more than one person why the picture had the square tubing. It is to allow placing the cart farther back inside the wheel wheel. I had to use wood spacers in order to fit the cart in a position that was more balanced (under the frame rail in the back), if you place it on the front subframe mounts, it will be tail heavy/tippy. About a foot more length would have allowed me to put the pads under the subframe mounts and the frame rail in the back and about 6" in height would have removed the need for 2x4s. The knobs are in the way on the top. Not sure what they add to the holes/pins I had to leave them out to clear the floor. The wheel locks work great, they lock the swivel and the wheel. The cart works very well once you get the body situated. It is a nice cart. I would recommend it, just be aware that it isn't plug and play.
Date published: 2023-07-31
Rated 4 out of 5 by from Works great with some mods This cart works great but the plastic adjustment knobs spin off of the pins holding the rails in place. So we had to weld some 1/2" bar to ours to make T-handles. Once we did that it works great.
Date published: 2021-08-18
Rated 4 out of 5 by from Probably would be 5 stars if the shipping on replacement part was reasonabl Overall the cart is awesome, it arrived missing a part which took months to arrive which was very frustrating
Date published: 2021-07-28
Rated 1 out of 5 by from Hands down the worst Cart I have ever worked with. Spend the extra money and get the auto twirler. Cart does not wheel good. The casters are cheap and do not spin around. Takes two people to make it go in a straight line. The twist bolts do not secure the tubes good and it comes apart while moving it. The Mount pads are not secured to the Cart it relies on the weight of whatever you put on the Cart to hold. I have worked with numerous carts in thw 30+ years of restoring cars and hands down this is by far the worst I have worked with.
Date published: 2022-07-26
  • y_2024, m_2, d_23, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_9
  • loc_en_US, sid_31539, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 6.74ms
  • REVIEWS, PRODUCT

Questions & Answers

I have a 1936 Desoto Airstream custom. Will this dolly support the whole car with body, frame and engine/transmission? The engine/tranmission and rear end will be removed in the near future.

Asked by: Pete
This can support up to 2000 lbs. I'm not sure what your car weighs, but I would guess its more than that with drivetrain installed.
Answered by: Nick BC
Date published: 2023-03-09

Will this hold a scout body?

Asked by: Sdg1
As long as it fits these requirements you should have no issues: 2000 lb Rating Overall Extended Length - 57" Overall Extended Width - 70"
Answered by: Nick BC
Date published: 2022-06-03

Can you use this to transport a body on a flat bed trailer

Asked by: Scary 1
With proper load securing of the chassis to the body cart and the body cart with chassis to the trailer, I see no reason it could not be transported.
Answered by: Nick BC
Date published: 2022-05-26

Would this work for 65 impala if so is it safe to tow the body on top of cart

Asked by: Jc805
This unit will work as long as is beneath the weight limit that is listed. However, we do not recommend towing this cart. Just pushing around the shop for storage.
Answered by: ZachC
Date published: 2022-05-12

Would you be able to change the frame rails on a 71 Camaro on this cart?

Asked by: Rik bou
Since this body cart needs the vehicle to sit on the pads of the cart as long as the pads are on a sturdy surface that will not bend that is not the frame you should be able to use this cart for that application.
Answered by: ZachC
Date published: 2022-03-02

Will this support a 1957 chevy bel air?

Asked by: Johnnie57
As long as it fits these requirements you should have no issues 2000 lb Rating Overall Extended Length - 57" Overall Extended Width - 70"
Answered by: ZachC
Date published: 2021-09-13

Would this work for a suburban?

Asked by: Dieselburb89
Thanks for reaching out to us. Based on your screenname I assume you are lucky enough to have a 89 diesel suburban. Too cool!! These carts are awesome to have during a frame off restoration and as long as you have everything stripped out of the shell you should be okay on weight but remember the limit here is 2000lbs. Have a great day!
Answered by: eastwood alsip
Date published: 2021-08-23

Is it possible to pick up at Pottstown location

Asked by: Gary
We would recommend calling our retail location to check inventory.
Answered by: SeanW
Date published: 2023-02-10
  • y_2024, m_2, d_23, h_7CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_33
  • loc_en_US, sid_31539, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 10.75ms
  • QUESTIONS, PRODUCT
Glossary
Unsure of a term? Look it up on our Glossary powered by The Garage
Eastwood Heavy Duty Body Cart
$419.99
In Stock
