Item # 10590 BRAND: Infratech

Infrared Dual Lamp Cure System

Twin 10"x30" Infrared Lamps for curing big housings; includes stand
Twin 10"x30" Infrared Lamps for curing big housings; includes stand
Infrared Dual Lamp Cure System is rated 4.0 out of 5 by 2.
  • y_2021, m_10, d_21, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_10590, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 11.22ms
  • REVIEWS, PRODUCT
$1,637.99
Loading...
Loading...
Save for Later
Twin 10"x30" Infrared Lamps for curing big housings; includes stand
  • 90-Day Returns
  • Technical Support

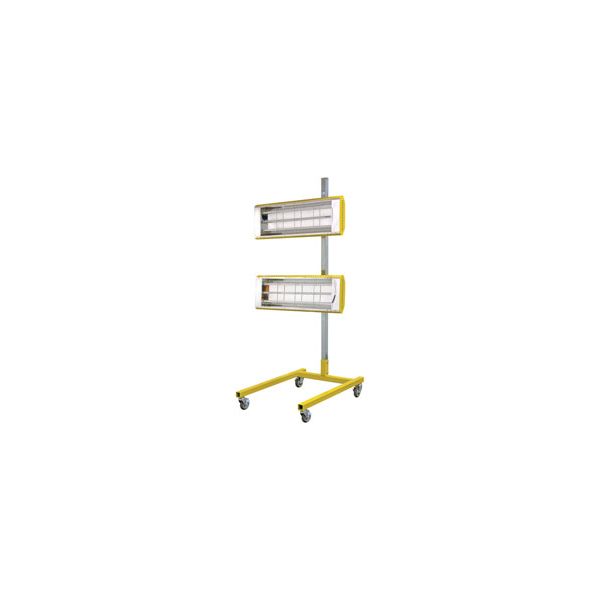

Infrared Dual Lamp Cure System

Description

Dual-Lamp Infrared Powder coat Curing System cures twice the area of our single-head model, to work faster. For curing large powder-coated work pieces, there's no easier or faster way to do it than under this Dual-Lamp Infrared Powder-Coating Curing System.

  • Cures area up to 36" x 36"
  • Dual 6000-amp infrared lamp heads
  • Total output of 37,700 BTUs
  • Separate on/off switches

Dual 6000-amp infrared lamp heads are attached to 12" extension arms on a 2" steel, powder-coated stand with four 4" locking casters. Both lamps are each about 12" tall, 36" wide, and are wired together, but have separate on/off switches. 25'-long power cord with 25-amp, straight-blade, 220v AC plug.

Warranty

Items that ship via Truck are non-refundable or returnable. Repair parts will be provided during warranty period.

Contents

Dual Infrared Lamps
6' Metal Stand with Casters
Instructions with Cure Charts

Shipping

Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.

Safety Information

Do not focus the light on combustible materials. Do not operate the light unless it is securely attached to the supplied stand.

Customer Reviews

Rated 5 out of 5 by from Good quality good value That phrase is way over used, but not in this case. With all due respect top the other reviewer, before I used these infrared lamp I would have guessed 4 or 5 inches was necessary - not the 8 " to 10 " which is effective . As for the shipping cost , well these 6000 amp Infrared lamps don't fit in a Priority mail flat rate box....I just powder coated a boat hull, adding huge value to it, and I could not have done it without these lamp arrays. Even a $20,000 oven would have been too small .Id pay the shipping again gladly.
Date published: 2016-08-23
Rated 3 out of 5 by from It's fair I don't feel that the product is described correctly. To operate correctly, the lamps need to be within 8 inches of powder coated item to heat to 400 degrees. Shipping costs of the lamps is a bit excessive. The lamp unit is built very well and does work well.
Date published: 2012-12-15
  • y_2021, m_10, d_21, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_10590, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 35.72ms
  • REVIEWS, PRODUCT

Questions & Answers

"Dual 6000-amp infrared lamp heads" So this unit uses 12,000 amps? I think I will need a direct connection to the nearest hydroelectric generating station to power it. It can't be 12,000 watts either, because at 220 volts, that would be almost 55 amps.

Asked by: screamingpencil
The lamps are 6000 Watts each, switched individually and wired in parallel which will draw 6000 Watts when they are both on. That will be 27 Amps draw when we do the calculation so it will need a 30 Amp, 220 circuit
Answered by: Bob G
Date published: 2020-09-18

i am trying to powder coat a bunch of rims. would this replace an oven? can this be used for pre bake and cure? im tight on space can i put this in a small walkin closet made from drywall or would that cause a fire?

Asked by: alir786
While this could replace an oven for larger items you will get the smoothest most consistent finish on wheels if you use an oven.
Answered by: Scott C
Date published: 2021-09-16

Can I buy the lamps without the stand?

Asked by: Sloan
The lamps are not available by themselves.
Answered by: S Church
Date published: 2019-08-28

I purchased 2 of these units and have lost the instructions of relative curing time & instructions. How can I get a new copy?

Asked by: captpj
You want to keep the lamps about 8" away from the powder coated piece, this will bring the temp of the powder to 400 degrees let the part sit there for 15-20 min.
Answered by: Ed O 88
Date published: 2019-04-04
