Multitool 2 Inch x 48 Inch Belt and 7 Inch Disc with 8 Inch Contact Wheel Attachment - 8CW
2" x 48" Belt, 7" Disc w/ 8" Contact Wheel Attachment
2" x 48" Belt, 7" Disc w/ 8" Contact Wheel Attachment
Eastwood Elite 80/120 10HP Motor/Scroll Assembly is rated
out of
5 by
3.
2" x 48" Belt, 7" Disc w/ 8" Contact Wheel Attachment
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description

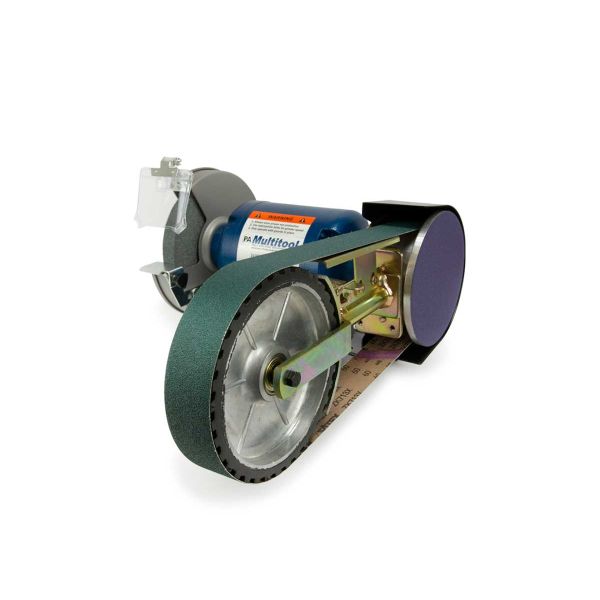

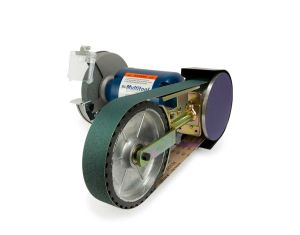

The Multitool 8CW is designed with a oversized 8 inch contact wheel for larger contoured grinding. The 8CW is a favorite among knife makers, blade sharpeners, and axe throwing competitors. The large contact wheel is perfect for flawless hollow grinds. Due to the size of the contact wheel the 8CW allows for additional belt cooling over traditional 2x48 belt machines.
The front contact wheel can be used for smooth controlled grinding, contouring, or internal finishing. The precision top platen can be used for perfect flat finishing. The underside offers a slack belt surface for external contouring and blending. The large 7 inch disc sander on the side offers plenty of surface area to work with for beveling, deburring, squaring, and general sanding. The quick change belt system allows you to change from grinding to polishing in seconds. The belt attachment can operate in a horizontal or vertical position. Multitool Attachments fit almost any bench grinder with a 1/2 or 5/8 shaft.
Multitool Features
Please note the bench grinder is not included.
Warranty
Specifications
Shipping & Handling
In the Box
Guides & Accessories
Safety Information
Application Tips
N/A
Reviews
Rated 5 out of
5
by
Vanwill from
Handiest tool in the shop
I have a small machine shop at my home--Bridgeport, Colchester 13x40, Jet 20" vertical bandsaw, much welding and plasma-cutting equipment. I have several pieces of abrasive-cutting equipment but have wanted this piece for years. I never pulled the trigger because of the price. Then, for the first time in YEARS, it was on sale. I bought it. Now, it's on sale for almost half the price I paid.
If you have never used a contact wheel belt grinder, you cannot imagine how much better it is than a steel-platen sander. Belts last at least 3X as long, and metal removal rates are nearly triple. Surface finishes are much better. It's all about bearing against a resilient contact wheel that makes the metal removal so much faster and the belt life so much longer.
Buy this, while it's on sale at a fantastic price. YOU WILL NEVER REGRET IT!!
Date published: 2021-12-30
Rated 5 out of
5
by
Matt from
Great product
Works great on my 8” variable speed palmgren bench grinder. However, the drive wheel sticks out 1/4” farther than it should because of the length shaft on the motor. The unit could be shimmed from the motor, or the back of the drive wheel could be turned down.
Date published: 2021-06-17
Rated 2 out of
5
by
Anonymous from
Bad multi tool.
The overall level of quality control has dropped compared to my first one! Bent parts,Missing parts and wrong instructions…
Date published: 2022-02-19
Questions & Answers
How and what units can this fit in grinders, need some help on the attachment point and how or if it's drilled already,
BOLT on Assembly
The Multitool 8CW is designed with a oversized 8 inch contact wheel for larger contoured grinding. The large contact wheel is perfect for flawless hollow grinds. Due to the size of the contact wheel the 8CW allows for additional belt cooling over traditional 2x48 belt machines.
The front contact wheel can be used for smooth controlled grinding, contouring, or internal finishing. The precision top platen can be used for perfect flat finishing. The underside offers a slack belt surface for external contouring and blending. The large 7 inch disc sander on the side offers plenty of surface area to work with for beveling, deburring, squaring, and general sanding. The quick change belt system allows you to change from grinding to polishing in seconds. The belt attachment can operate in a horizontal or vertical position. Multitool Attachments fit almost any bench grinder with a 1/2 or 5/8 shaft.
Multitool Features
Fits most bench grinders with a 1/2" or 5/8" shaft
Quick change belt system with automatic tensioning
4 working areas of abrasive contact - Contact wheel, Flat platen, Slack belt, 7" Abrasive disc
Belt can be operated in horizontal or vertical position
OSHA Approved disc and belt guarding
Fully Machined, Balanced hub ensures disc & belt run vibration free
Precision top platen can be used for perfect flat finishing
The tool free quick change belt system allows the operator to go from rough grinding, to finishing & polishing in seconds
Date published: 2023-02-13
Can it go on the left side of the motor or does it have to be on the right!? I need it to fit the left
due to the design of the platen it can only be used on the right side of the motor.
Date published: 2021-05-15
Dose this one come ready to use out of the box or is it just the attachment?
this is just an attachment
Date published: 2021-03-13
What size is the drive wheel
Unfortunately the manufactures literature does not include the drive wheel size. The best we can determine it is a 5" drive wheel.
Date published: 2021-02-27
Do u sell an attachment like this already connected to the power unit. Ready to work out of the box?
YES, we offer two Multitool Belt/Disc combination units Item #32566 and Item #21534. go to www.eastwood.com and type in the Item numbers on the search bar for specifications, cost and videos/photos.
Date published: 2021-02-10
