Item #
16170ZP
BRAND: Eastwood

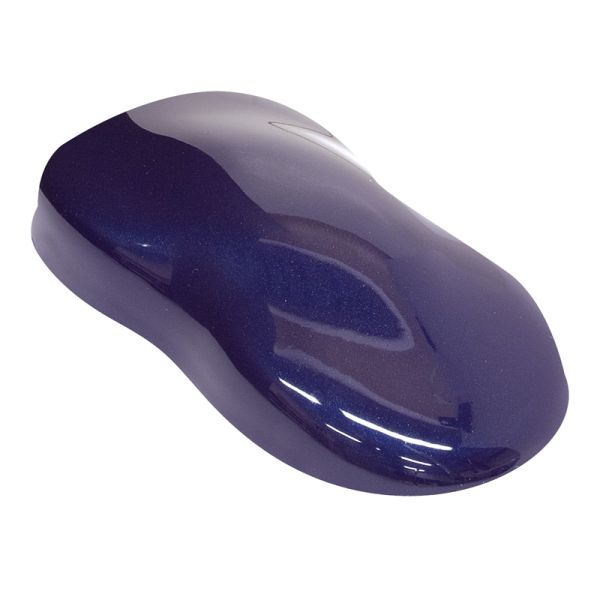

Eastwood 4:1 Royal Blue - Basecoat - Automotive Car Paint - Gallon
This deep, dark, indigo color is made with spectacular blue pearl effect particles that shimmer in the sun
This deep, dark, indigo color is made with spectacular blue pearl effect particles that shimmer in the sun
Eastwood Ceramic Engine Paint Matte Black Qt is rated
out of
5 by
3.
Customize this product:
This deep, dark, indigo color is made with spectacular blue pearl effect particles that shimmer in the sun
90 day Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
Eastwood Royal Blue Basecoat Paint adds the superior durability of urethane to the ease of conventional basecoats.
- Apply a durable urethane finish wherever you live in the continental US, even CA
- Choose a fast, medium or slow Low-VOC Activator
- Makes 5 sprayable quarts
- Clearcoat is required on basecoat paints
- Mixes 4:1 with your activator choice
- Approximate coverage: 160 SQ FT
- Flake/Pearl Particle size: 10-60 microns
- Max Temperature: Paint will handle up to 300 degrees without delamination, but color shift may occur, so it should not be used in a high heat setting
- Made in the USA
- This deep, dark, indigo color is made with spectacular blue pearl effect particles that shimmer in the sun
Basecoat Paint Kit is a low-VOC system, so it meets regulatory limits in highly-regulated areas, eliminating the need to switch to a waterborne system.
Warranty
Specifications
BASECOAT PAINT MIXING RATIOS
Thoroughly mix four parts Low-VOC Urethane Basecoat with one part Low-VOC Urethane Activator. Use Fast (50308ZP) for small jobs, or temps below 75°F; Medium (50309ZP) for small jobs, or temps between 70-85°F; or Slow (50310ZP) for large jobs, or temps above 80°F. Keep in mind, other factors, such as humidity, air flow and total film thickness should also be considered. In many situations, it will be useful to add 10%-20% 50104ZP Zero-VOC Reducer to aid sprayabliity, flow and leveling. Remember, this is an activated basecoat system; only mix as much as is needed. Pot life is about 2 hours at 70°F.
PAINT GUN SET-UP
HVLP Gun: Fluid Tip 1.2-1.4 mm Inlet Spray Pressure 8-10 psi
Conventional Gravity: Fluid Tip 1.2-1.5 mm Inlet Spray Pressure 40-50 psi
Conventional Siphon: Fluid Tip: 1.3-1.6 mm Inlet Spray Pressure 40-50 psi
APPLICATION INSTRUCTIONS
Apply Low-VOC Urethane Basecoat color in two full medium wet coats with a consistent 50% overlap pattern. Allow five to ten minutes flash time between coats. Flash time should increase if additional coats are applied. Most colors will cover in two coats.
Basecoat should dry dust-free within 10-20 minutes. May be lightly sanded in as few as 20 minutes. Wait at least 30 minutes before wet sanding. Wait 45-90 minutes before taping on the fresh film. All dry times are approximate, at 70°. Temperature, air flow, total film thickness and other variable may extend these times.
In the Box
Contents
Low-VOC Urethane Activator, 1 qt. (your choice of Fast, Medium or Slow)
Guides & Accessories
Instructions
Click here for product instructions
Safety Information
Accessories
PRE Painting Surface Prep
Low-VOC Gray Urethane Primer
12569 Concours Master Gun Cleaning Kit
12846Z Aerosol-Injected Cleaner
SAS Bandit Respirator
Gen-Nex Painters Coveralls
15639 Concours LT HVLP Paint Gun 1.3mm
Application Tips
Choose From A Fast, Medium Or Slow Low-Voc Activator
Reviews
Rated 5 out of
5
by
Scott from
Top notch
Eastwood quality is excellent, product is easy to use and the service I received when I had questions is impeccable! Thanks Eastwood
Date published: 2022-07-03
Rated 4 out of
5
by
Bill W from
Bill's paint experience
The paint does not match the color swatch in the Eastwood store. It is so very much more brighter. Still, I was able to combine it with another Eastwood color to achieve the perfect match I was looking for. I wish Eastwood would offer half pints for testing and mix-matching purposes. My adventure involved purchasing two separate gallons totaling more than $440. I could have went with a local auto paint store customizing the color for less $. Still, this paint is an excellent Eastwood product ! highly recommend.
Date published: 2022-09-25
Rated 2 out of
5
by
James from
Buy locally
I bought this paint 3 years ago to paint my 95 F-150, I had some damage to my hood and roof and needed to repaint it. I reordered the same paint I originally used, but the paint I received was several shades darker. Also the original paint has faded very badly. Now I will have to repaint the whole truck again to match the color of the new paint. My advice is to buy your paint locally cause if you ever have any paint damage you can not get good paint match from this company.
Date published: 2023-06-16
Questions & Answers
Is there somewhere I can get better veins of the color?
The only other ways to view this than on our website would be at any one of our retail location or by ordering the chip chart on our website https://www.eastwood.com/ew-branded-color-paint-chart.html.
Date published: 2020-03-08
How much of this will I need to paint an Infiniti G35 Coupe from it's stock Diamond Graphite (Dark Silver) color.
This Paint will cover approximately 160 sq.ft. per gallon. if you are going to do the door jams, underhood, and the trunk areas, we would suggest getting 2 gallons right away. Mix both gallons in their can, after they have been thoroughly mixed in their own can, then pour the paint into a larger clean plastic bucket, mix the 2 gallons together. after the paints have been mixed, pour the mixed paint back into the gallon can and replace the lid. Now your paint will always match, even if you have to redo a panel at some other time.
Date published: 2021-05-29
Do I need to add reducer in this paint if the ambient temperature about 80-80F? The car is black and has grey primer patches now, do I need to primer it to make it a uniform color before spray this base coat on?
Reducer is not necessary but strongly recommended- especially when spraying in higher temperatures. For best results you would want to apply a primer or sealer to have one uniform finish before applying your paint.
Date published: 2020-09-06
Gonna paint a Ford Crown Victoria include the underhood, door jam from black to this blue. How much basecoat/clearcoat do I need? Do I need primer for this job?
This product will cover 160 sq ft, as for the primer it would be depended upon what your painting over.
Date published: 2019-05-19
What size paper filter should be used for this paint
Item #14749 witch is a 226 micron
https://www.eastwood.com/dekones-paint-strainers-medium-226-micron-100-box.html
Date published: 2020-03-13
Given that this is a “faint metallic”, can it be colour sanded prior to clear, or should this still be avoided?
With any Metallica paint it is always best to apply the clear over your paint, and then sand your clear. If you do need to sand the base coat for some reason, sand and then apply another coat of paint and then the clear.
Date published: 2022-03-07
What is the waiting time before it can be clear coated?
You can clear coat on top of this paint after about 45 min.
Date published: 2022-03-07
Is this metallic or non-metallic?
This is a very faint metallic paint.
Date published: 2018-12-25
