Item # 31438 BRAND: Eastwood

Eastwood 60 Gallon Hi Flow 4.7HP Air Compressor

Eastwood 60 Gallon Hi Flow 4.7HP Air Compressor
Eastwood 60 Gallon Hi Flow 4.7HP Air Compressor
Eastwood 60 Gallon Hi Flow 4.7HP Air Compressor is rated 5.0 out of 5 by 8.
  • y_2024, m_9, d_14, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_7
  • loc_en_US, sid_31438, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 4.59ms
  • REVIEWS, PRODUCT
$1,574.99
Loading...
Loading...
Save for Later
Eastwood 60 Gallon Hi Flow 4.7HP Air Compressor

2 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Eastwood 60 Gallon Hi Flow 4.7HP Air Compressor

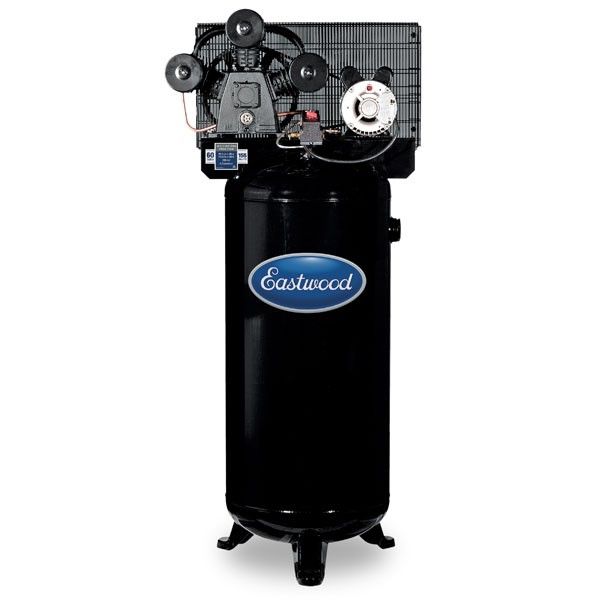

main product photo
Frequently Bought Together

Price for all checked items:

Product Overview:

Description

Eastwood Pro-Quality Air Compressors are a great addition to any garage or shop.

Eastwood 60 Gallon Hi Flow 4.7HP Air Compressor

  • 60 Gallon Tank
  • 4.7HP Electric Motor
  • Single-Stage Pump
  • Maximum Pressure: 155
  • 230V AC
  • 16.1 CFM@40PSI
  • 14.0 CFM@90PSI
  • 80% Duty Cycle

Choosing the right compressor for your individual needs is the most important step. Eastwood professional quality air compressors are designed to work hand in hand with our full line of automotive air tools and air management accessories. All Eastwood Air Compressors are made in USA and are backed by a full 2-year warranty, so you can be sure you are getting a quality air compressor that will serve your needs well into the future.

Eastwood professional quality air compressors are designed to work hand in hand with our full line of automotive air tools and air management accessories. Below are the Specification Chart and Tool Usage Chart for our full line of compressors.


Click Here for Full Specification Chart.


Click Here For Tool Usage Chart.

Warranty

2 Year

Shipping & Handling

Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.

In the Box

Contents

(1) Eastwood 60 Gallon Hi Flow Air Compressor

Guides & Accessories

Instructions

Click here for Operators Manual
Click here for Parts Manual

Safety Information

Always read and fully understand operators manual before using this product. Always consult a certified electrictian to install the unit. Always keep hands out of the way of rotating components. Never operate this tool in wet conditions due to electrical shock hazard. Never weld to the tank of a compressor.

Accessories

Click Here for Automotive Air Tools
Click Here for Air Management Accessories

Application Tips



Reviews

Rated 5 out of 5 by from Good compressor Very pleased so far. Delivered safely packaged on a pallet, pressurizes quickly and plenty of flow for DA sander and other tools. Not quiet but not terribly loud either. I would recommend this product.
Date published: 2023-03-30
Rated 5 out of 5 by from 60 gallon compressor. Received in good condition. The compressor works as advertised and is just what I needed.
Date published: 2023-01-29
Rated 5 out of 5 by from Awesome service My order was filled and shipped very quickly. The delivery company was super easy to work with as I was out of town when the product was ready for delivery.
Date published: 2021-11-12
Rated 5 out of 5 by from Great Value I replaced my 30 Gallon compressor for this Eastwood model, best move i could have made. I love the quick refill, plus I've painted several items on my Volkswagen Bus build and had plenty of pressure to spare works well with my Eastwood Concurs Pro HVLP paint guns, shipping was very fast!
Date published: 2019-04-25
Rated 5 out of 5 by from Best choice Found this compressor to be the best choice out of the many looked at, best numbers performance wise. Quieter than expected,very satisfied so far !
Date published: 2017-08-07
Rated 5 out of 5 by from All around great deal I looked at other compressors that were similar and found the Eastwood to have more maximum output psi and higher cfm @40 and 90 psi. then the others. Also felt confident with the Eastwood name. Fills up quick and run a lot of my air tools with no problem.
Date published: 2017-07-03
Rated 5 out of 5 by from Awesome Compressor I am very pleased with the Eastwood 60 Gallon 4.7HP compressor that I purchased. The unit came quickly, it was mounted on its own pallet so I know it was handled well and it even came full of oil so all I had to do was to mount it to the floor and connect the electrical. I am very impressed with the quality of the unit and I love that it was made in the USA. The recovery time is minimal and the pump itself is not too loud. Great Job Eastwood!!!
Date published: 2016-03-02
  • y_2024, m_9, d_14, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_7
  • loc_en_US, sid_31438, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 6.54ms
  • REVIEWS, PRODUCT

Questions & Answers

Does this need a plug? Or does it need to be hard wired? Just ordered, and trying to get the electrical in place and ready before it shows up. says 230v 30amp single phase, do you know if that requires a dual pole breaker or dual pole required?

Asked by: Corey
This compressor will not arrive with a plug. You will want a licensed electrician to install one for you. This unit is 230v single phase and requires a 3p amp breaker minimum.
Answered by: Kelly H
Date published: 2024-03-08

For a typical spray gun that requires 13cfm (such as the 3m Performance PPS 2.0), would this compressor be best or the Eastwood 30/60 Scroll Compressor?

Asked by: Compressor Quest
Either compressor would work great for this application. I think it depends if the low noise of the QST 30/60 is important to you. In a small enclosed shop the form factor and reduction of noise is hard to beat.
Answered by: Nick BC
Date published: 2024-03-06

Can this compressor run on 230 v 50 hz.  I noticed that it’s rated for 60hz. ?? The reason for asking need where I am from we use 220 volts standard at 50 hz.  Will this compressor work?

Asked by: Sabadabi
No, this compressor is specifically designed for service with 60HZ electricity.
Answered by: CodyB
Date published: 2022-12-29

Whats the weight

Asked by: Randy
This compressor weighs 287 lbs.
Answered by: Kelly H
Date published: 2022-12-29

Is this a 230 volt single phase or requires 2 no. 110v lines?

Asked by: Sabadabi
This compressor is a single phase.
Answered by: Kelly H
Date published: 2022-04-29

does this compressor have a plug on it? (do I need to put in an outlet) or does it need to be hardwirred?

Asked by: Corey
This doe snot arrive with a plug so a licensed electrician must be sought out for instillation.
Answered by: Kelly H
Date published: 2022-12-29

What type of connection is needed to run this compressor?

Asked by: Jimy
This unit is a 230v single phase compressor that has a 22 amp draw and requires a minimum of a 30 amp breaker.
Answered by: Kelly H
Date published: 2022-12-29

Will this compressor work with a 30 amp breaker and 10 gauge wire?  It will only be less than 10 foot run.

Asked by: Tom B
Yes, a 30 amp breaker on a grounded circuit will work. 10 gauge wire is the minimum size you can use. 8 gauge wire would be preferred.
Answered by: vince
Date published: 2022-12-29
