Item # 22199 BRAND: Eastwood

Eastwood Hydraulic Tubing Bender

Quickly and accurately bend up to 2" x .120" wall tubing in your home shop!
Quickly and accurately bend up to 2" x .120" wall tubing in your home shop!
Eastwood Hydraulic Tubing Bender is rated 4.0 out of 5 by 4.
  • y_2023, m_1, d_30, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_3
  • loc_en_US, sid_22199, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 20.73ms
  • REVIEWS, PRODUCT
$2,499.99
Loading...
Loading...
Save for Later
Quickly and accurately bend up to 2" x .120" wall tubing in your home shop!

1 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood Hydraulic Tubing Bender

Product Overview:

Description

Looking for an easier way to bend tubing? Look no further. This Eastwood Hydraulic Tubing Bender takes all the grunt work out of tube bending and allows you to make quick, accurate repeatable bends in up to 2" x .120" wall mild steel tubing. Perfect for roll cage, suspension, and heavy tube work, this bender is easy to move and use. Roll it out of the way when you do not need it.

Features:

  • Make bends with high accuracy and professional results
  • Creates accurate, smooth, kink-free bends
  • Casters for mobility and easy storage. Even roll it to your project for quicker work!
  • 1 HP motor
  • Build roll bars, shop fixtures, go-kart frames and much more

The Eastwood Hydraulic Tubing Bender is a high quality, precision tool capable of creating accurate, smooth, kink-free bends, up to 180° in aluminum, steel and stainless steel tubing, in sizes ranging from 3/4” to 2” with available Eastwood Die Sets. Build roll bars, shop fixtures, go-kart frames and much more with high accuracy and professional results.

Easy and Accurate Fabrication.

Fabrication Must-Have

Precision Bends in Tubing.

Fabrication Must-Have

Fabricate Roll Bars and Race Car Components Like This Front End Frame.

Fabrication Must-Have

Easily Roll It To Your Project. Store It When Not In Use.

class="mobimage01"

Warranty

1 Year

Specifications

Motor Horsepower: 1
Power Requirements: 120 VAC, 60Hz, 11.5Amps
Power Cord: 8’ long [2.4m], 16 Ga., Grounded
Hydraulic Fluid Type: 10W Hydraulic Fluid
Hydraulic Cylinder Bore: 63mm
Hydraulic Cylinder Stroke: 12” [0.3m]
Maximum Material Capability: 2” O.D. x 0.120” Wall Mild Steel, Aluminum (Stainless, Chromoly and other harder materials may be limited to 2” O.D. x 0.090” Wall)
Maximum Recommended Bend Angle: 90° for 120° Dies and 180° for 240° Dies (Dies NOT INCLUDED)

FAQs

Q: What is a hydraulic tubing bender?

A: Hydraulic tubing benders are extremely useful tools that use hydraulic pressure to bend various sizes of metal pipe and electrical conduit to specific angles. Hydraulic tubing benders work in a similar manner to hydraulic automotive jacks, using a hydraulic piston that raises to exert high amounts of pressure on the pipe between the bending dies.

Hydraulic tubing benders can perform multiple bends repeatedly, and the work can be done in less time and with less effort than manual tubing benders. This tool is particularly useful for bending steel, aluminum and brass pipes. They are often used for automotive repair, but can also be used for landscaping, concrete work and more.

Q: What is the difference between a pipe bender and a tube bender?

A: There is no significant difference between a pipe bender and a tube bender besides naming convention. If a machine is able to bend a tube, then it is also able to bend a pipe. The only exceptions to this rule would be for bending either very large or very small tube and piping.

Although there is no difference between a pipe bender and a tube bender there is a difference between a pipe and a tube. A pipe is measured by the inside diameter, while a tube is measured by its outside diameter. Another difference is that tubes do not need to be round. Tubes are available in a variety of shapes, including square and oval.

Q: How do you use a hydraulic tubing bender?

A: To properly operate your hydraulic tubing bender, make sure the "on/off" switch is in the "off" position. Next, select the appropriate bending form for the tubing that is about to be bent. Then place the tubing in front of the machine, and if needed, place supports under it to keep it in the proper bending position.

Make sure to lubricate the side of the corner bracket where the machine will contact the pipe by spreading some grease around the area. Place the brackets in the appropriate holes as marked on the bending frame. Finally, shut the bending frame and completely insert the support pins in the corner via the bending frame wings. Align the corner brackets so that the zero marks on the angle indicators line up with the mark on the top wing. Most hydraulic pipe bending machines do not have angle indicators.

Shipping

Ships Via Truck with a flat rate charge shown in shopping cart. Lift gate option.

In the Box

Contents

(1) Frame and Bender Assembly
(2) Swivel Casters
(2) Fixed Casters
(1) Degree Plate
(18) M8 x1.25 Bolts
(18) M8 Lock washers
(1) Flexible Pointer
(1) 2” Long x Ø 7/8” U-Strap Pin
(1) 3” Long x Ø 7/8” U-Strap Pin
(1) 4.25” Long x Ø 7/8” Die Drive Pin
(1) 5.35” Long x Ø 7/8” Follow Block Pin
(1) 5.5” Long x Ø 1” Pivot Pin (installed)

NOTICE - The following parts are included as a convenience should the Hydraulic Cylinder require future rebuilding.

Hydraulic Cylinders require specialized tools, equipment and techniques for repair.

The installed Cylinder MUST be professionally rebuilt at a local hydraulic component repair facility. DO NOT attempt self-repair.

(2) 30mm I.D. x 40mm O.D. Replacement Hydraulic Cylinder Seals
(2) 20mm I.D. x 30mm O.D. Replacement Hydraulic Cylinder Seals
(1) 55mm O.D. x 3.00mm Replacement O-Ring Seal
(1) 24mm O.D. x 3.25mm Replacement O-Ring Seal

Dies are sold separately

Available Options

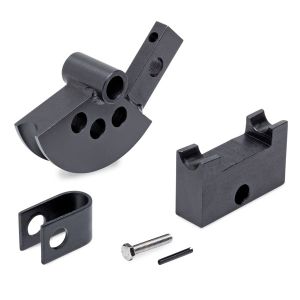

21118 - 1.0" x 4" Radius, 120° Die

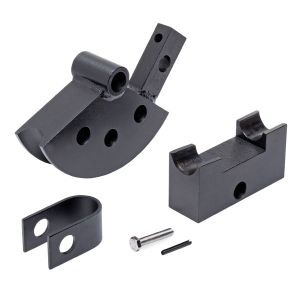

21119 - 1.5" x 5" Radius, 120° Die

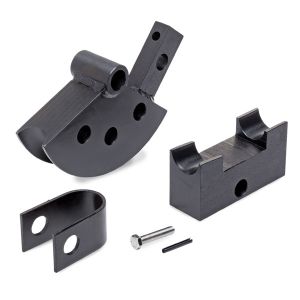

21120 - 1.625" x 5" Radius, 120° Die
21121 - 1.75" x 6" Radius, 120° Die
21122 - 2" x 6" Radius, 120° Die
21124 - 1.0" x 4" Radius, 240° Die
21125 - 1.5" x 5" Radius, 240° Die
21126 - 1.625" x 5" Radius, 240° Die
21127 - 1.75" x 6" Radius, 240° Die

Guides & Accessories

Instructions

Click here for product instructions

Safety Information

Keep fingers and hands away from moving parts while operating this tool. Always wear proper hand, foot, and eye protection when bending tubing.

Application Tips

N/A

Reviews

Rated 5 out of 5 by from Bending tube without the work out I just got this as my first bender and its been awesome, just consistent smooth bends. Honestly im just bending to get the hang of it and this things made it fun for a diy home setup maybe overkill for my needs but i wanted the hydraulic bender.
Date published: 2021-06-26
Rated 3 out of 5 by from Bent on bender Was quite disappointed that the fan shroud to the electric motor was dented, torn and repaired for a brand new bender. Company was going to refund half of the shipping, but it's been 2 weeks and still no credit.
Date published: 2022-05-07
Rated 3 out of 5 by from Looks nice Looks great but have not seen the dies I ordered for it 2+ weeks ago so can't say how it work. Give it a 3 star as looking great only gets you so far. 3k garage art at this point with out the dies.
Date published: 2021-10-10
  • y_2023, m_1, d_30, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_3
  • loc_en_US, sid_22199, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 21.73ms
  • REVIEWS, PRODUCT

Questions & Answers

Can this bend Docol R8 (stiffer/stronger than Chromoly) 1.75" OD with 0.095" wall

Asked by: Justin
I don't have any Docol R8 to test unfortunately, but it can bend 2" Chromoly with 0.090" wall so it should be capable of the Docol R8 at 1.75".
Answered by: Nick BC
Date published: 2022-10-25

Will it bend 2” inside diameter tubing?

Asked by: Shane2004
Tubing is measured by OD. You will need to find the OD of this tubing you plan to use and see if it falls within the specs that we list: 3/4” to 2” up to .120" wall thickness.
Answered by: Kelly H
Date published: 2022-06-27

What size square tube is the frame built from

Asked by: Ryan96
The frame is 1.5" square tube with a 1/8" wall thickness.
Answered by: Nick BC
Date published: 2022-05-27

will this bed 2" sch 40 with .154 wall thickness

Asked by: russell
Unfortunately it would not. This works with up to .120" Wall thickness at a max.
Answered by: Kelly H
Date published: 2022-05-04

Can it bend 1.5in aluminum tubing?

Asked by: Kjg1382
Certainly. With the appropriate radius die set, 21119 1.5in x 5in Radius 120 degree Die or 21125 1.5in x 5in Radius 240 degree Die depending of how much bend angle you need, 1.5" aluminum tubing can be bent.
Answered by: Nick BC
Date published: 2022-03-23

Will there be 1.25” die’s available for this in the near future? Or will dies from other benders work with this bender?

Asked by: Hunter
While we do not currently have anything in the works we are constantly looking for ways to adapt and improve our product line. Unfortunately, we do not cross-test our benders with 3rd party dies.
Answered by: ZachC
Date published: 2022-03-02

will this bend square tubing?

Asked by: kl 69
Unfortunately, we do not offer any square dies at this current time.
Answered by: Kelly H
Date published: 2022-01-31

Would it roll 1.625 stainless steel tubing with the wall at .0625 At a 90deg. Or a 45deg. I’m pretty sure I can use the 2” roll die

Asked by: Dirty steve
The machine is certainly capable of bending your tube, but I would recommend purchasing the appropriate size die for best results.
Answered by: Nick BC
Date published: 2022-01-28
