Item # 15838 BRAND: Eastwood

Eastwood Pin Alignment System

Eliminate paint chips when reassembling doors, hoods and deck lids after paint.
Eliminate paint chips when reassembling doors, hoods and deck lids after paint.
Eastwood Pin Alignment System is rated 4.0 out of 5 by 6.
  • y_2022, m_8, d_12, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.32
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_5
  • loc_en_US, sid_15838, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 21.61ms
  • REVIEWS, PRODUCT
$23.99
Loading...
Save for Later
Eliminate paint chips when reassembling doors, hoods and deck lids after paint.

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood Pin Alignment System

Product Overview:

Description

Eastwood Pin Alignment System Features:

  • Magnetic pin alignment system
  • Ensures perfect alignment every time
  • Works on doors, hoods and deck lids
  • Eliminates paint chips when reassembling
  • 1-Year warranty

A set of magnetic body panel alignment pins is a simple but very effective way to properly align hoods, doors and trunk lids on your vehicle. Even being the slightest bit off when reassembling these parts can cause irregular caps, fender overlaps, paint chips and other problems. Before removing the part for repair and paint, use the included bits to drill two small alignment holes in each hinge so you know where things are supposed to be when set. Then when it’s time to reinstall, insert the magnetic pins first thing. You’ll know everything is properly aligned before tightening the fasteners. Watch the demonstration video above or read our article to see the complete process.

This simple door pin alignment system saves you from having to constantly adjust the hardware — not to mention valuable time and money from paint reworking and body repair. It works with literally any vehicle and won’t even be noticeable to the average viewer. Call us seven days a week at 1-800-343-9353 for free assistance from a DIY automotive expert.

Warranty

1 Year Warranty

In the Box

Contents

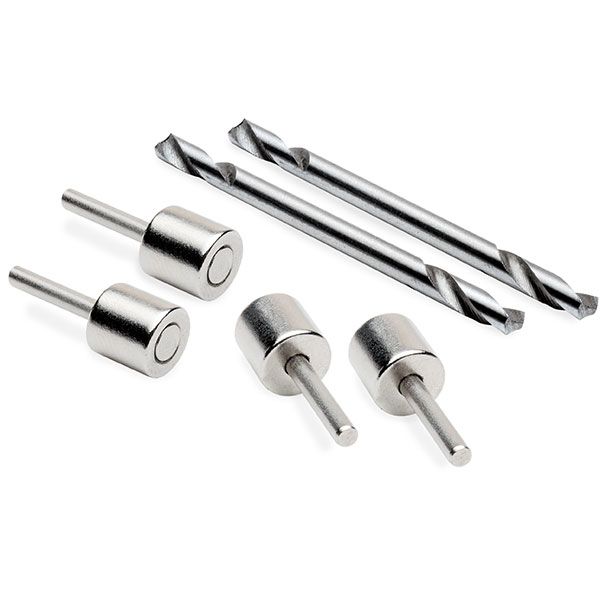

2 x double ended one eighth Inch diamter drill bits approx 2 Inch in length 4 x 0.098 Inch diameter magnet pins .75 Inch length

Guides & Accessories

Safety Information

Always wear eye protection when using power tools to drill holes. Do not allow small children to play with magnets

Accessories

Eastwood Air Drill 30003
PRE Painting Prep 10041z
500LB Work Stand 43120
Fairmount Body Hammer and Dolly Set 15332

Application Tips

Once you have completed any metal repair on the doors and rebuilt the hinges simply install the doors and adjust the gaps as normal, taking time to get them just right. Now use he supplied one eighth Inch drill bit and drill 2 hols in each hinge. Remove the doors , prime and paint the vehicle and components and when its time for reassembly simply insert he supplied 0.098 Inch magnet alignment pins in each hole perfect door alignment every time!
