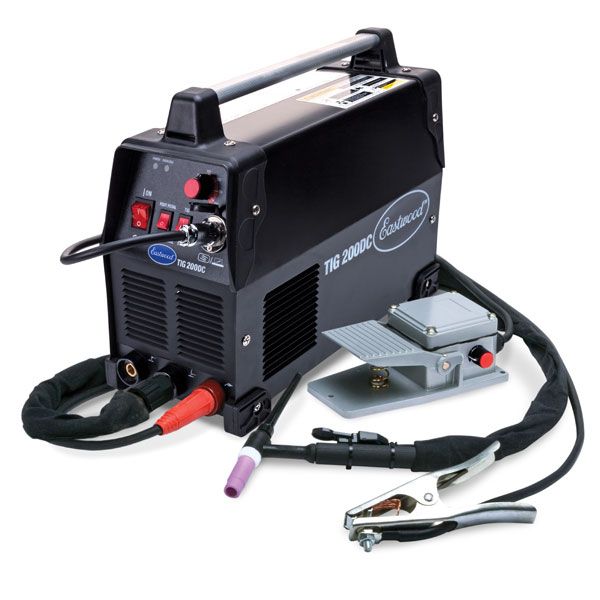

Eastwood TIG 200 DC Welder
Item #20566 Brand: Eastwood
The Eastwood TIG 200DC is designed for the enthusiast wanting the benefits of TIG welding steel and stainless without the cost of an AC inverter. The TIG200DC is one of the easiest TIGs on the market for set up and use and also includes the most features. A must for anyone wanting to get started in TIG welding!
- Stick welds in DC Positive/Negative
- 10-200 amp DC output inverter power supply
- 3/16" capacity in steel and stainless steel
- Remote pedal with variable amperage control
- High frequency start for precise arc control
- Internal pre gas flow set at 0.5 sec and post gas flow set at 5 sec
*Please note: This welder does not weld aluminum. To weld aluminum please order our Eastwood TIG Welder 200 Amp AC/DC welder which has the high frequency AC setting needed to properly weld aluminum.
About Eastwood TIG 200 DC Welder
TIG Welding is the most controllable, efficient and versatile method of welding many metals including steel, stainless steel and more. Your EASTWOOD TIG 200 DC WELDER with High-Frequency Inverter Technology is capable of welding thin or heavy gauge steel with precision and ease. The voltage self-sensing circuitry automatically detects a power source range of 110 to 240 volts and delivers from 10 up to 200 Amps DC. The included foot pedal provides the operator with the precise amperage control required when welding. A high frequency start feature guarantees an instant arc strike with no tungsten contamination.
Overall Dimensions: 16.9" (430mm) x 7.3" (185mm) x 12" (306mm)
Approximate Weight: 18 lbs. (8.16kg)
TIG Rated Duty Cycle: 120VAC 60%@145 Amps, 220VAC 60%@190 Amps
TIG Output Amperage Range: 10-145A DC, 10-2000A DC
TIG Pre Gas Flow: 0.5 Sec
TIG Post Gas Flow: 5 Sec
STICK Rated Duty Cycle: 120VAC 60%@140 Amps, 220VAC 60%@185 Amps
STICK Output Amperage Range: 10-140A, 10-185A
Maximum Output No Load Voltage:56V DC
Power Cord Receptacle Plug: NEMA 6-50R
Unit Dimensions: 14.5" Long x 12.25" Tall x 7" Wide
The rated Duty cycle refers to the amount of welding that can be done within an amount of time. The Eastwood TIG 200 DC has a duty cycle of 60% at 190 Amps. It is easiest to look at your welding time in blocks of 10 Minutes and the Duty Cycle being a percentage of that 10 Minutes. If welding at 190 Amps with a 60% Duty Cycle, within a 10 Minute block of time you can weld for 6 Minutes with 4 Minutes of cooling for the welder. To increase the duty cycle you can turn down the Amperage Output control. Going above 190 Amps will yield a lower duty cycle.
(1) Eastwood TIG 200 DC Welder with NEMA6-50P Plug
(1) Shielding Gas Regulator
(1) Shielding Gas Hose
(1) Ground Cable with Clamp (10’)
(1) WP #17 TIG Torch (14’)
(1) Foot Pedal for Amperage Control
(1) 110-120 VAC to 220-240 VAC Adaptor Plug
(1) Instruction Manual
(1) Hand Held Shield
(1) #7 Gas Nozzle (7/16”)
(1) #6 Gas Nozzle (3/8”)
(1) #5 Gas Nozzle (5/16”) (Installed)
(1) Long Back Cap
(1) Short Back Cap (Installed)
(1) 3/32” Collet Body (Installed)
(1) 3/32” Collet (Installed)
(1) 1/16” Collet
(1) 2.0mm Collet
(1) 1/16” Red Thoriated Tungsten
