- 28 inches overall length from tank to tank
- Radiator holds 1.45 Gallons of coolant
- Mount tabs on each tank add another 2 inches to each side
- Upper hose is on driver side, lower hose is on passenger side
- Filler neck located on passenger side
- Core thickness 2.2 inches
- Upper hose diameter: 1.5 inches
- Lower hose diameter: 1.75 inches
- Overall core height: 19 inches
Item #
20152
BRAND: Maxx Power

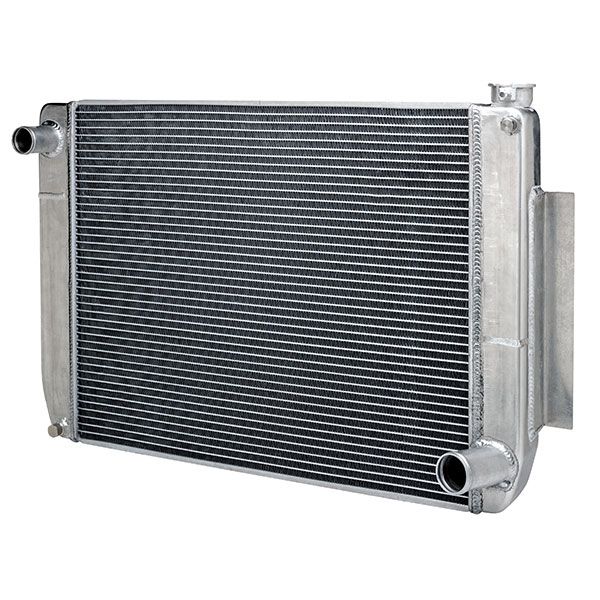

Maxx Power Chevy Style Tri Flow Aluminum Radiator 28 Inch
Brand:
Maxx Power
In stock
SKU
20152
Maxx Power Chevy Style Tri Flow Aluminum Radiator 28 Inch is rated
out of
5 by
71.
Special 3 pass design for Chevrolet motors, produces temps up to 24 degrees lower than other aluminum radiators
- 90 Day Returns + 100% Satisfaction Guarantee
- FREE Lifetime Tech Support
QUESTIONS? Talk to an Expert:
800-343-9353 |
Chat |
Email Us
QUESTIONS? Talk to an Expert: 800-343-9353 | Chat | Email Us
Frequently Bought Together
Total price for all checked items:
specifications_ax
*Note: Specifications are approximate and subject to change.
Unsure of a term? Look it up in our Glossary powered by The Garage
application_ax
Universal
Rated 5 out of
5
by
Rollarello from
Stay Cool
Got it on closeout sale. Seems well built and huge. Not an exact fit for my 1995 mustsng gt but I will make it work for the value.
Date published: 2025-09-11
Rated 5 out of
5
by
Mark from
Nice radiator
Well built radiator. Took a little Macgiver engineering but I got it to fit in my 1947 Chevy sedan delivery. Needed an electric fan, that’s step two of the installation to help it cool better
Date published: 2024-09-13
Rated 5 out of
5
by
wesblake from
Promise delivered!
This radiator delivers it's promise. I have a close to 700HP roots blown small block that sometimes ran up to 225-230 degrees. I put this in (along with a higher CFM fan just to note, 1600 to a 2650) and my temps are stable at 190 now! Hard to burp because of the chambers but well worth it.
Date published: 2024-06-07
Rated 5 out of
5
by
Anonymous from
Cooler is better
Nice product. Temperature dropped 15 degrees thx
Date published: 2023-06-28
Rated 5 out of
5
by
eddie from
Very nice
using it for my 355sbc, keeps it cool when not moving for long periods of time.
Date published: 2023-06-22
Rated 5 out of
5
by
Troy from
Automotive Instructor for 35 years.
This radiator is well built and has plenty of capacity for the small block Chevy application in our 1964 Ford PU. This cost less than half of the other options that I researched.
Date published: 2023-05-04
For a 1990 jeep wrangler yj with 2008 5.3 vortec what radiator do you recommend
Our Tri flow. Go to our website search Tri flow. it depends on measuring the width. Height is standard 19" and 2.2 inches thick
Date published: 2024-01-22
I've got a 66 Pro Street Mustang with a 871 blown 351C. Blowers make a lot of heat even when you aren't leaning on them so heating up has always been big issue. The Griffin we used didn't cut it. Will the tri flow rad work for low RPM use.
The tri-flow reduces heat 24 degrees while reducing water temp.
Date published: 2025-08-19
What water pump is recommended?
Depending on the vehicle and motor
Date published: 2024-09-14
1973 nova , 350 engine , still using mechanical fan and also a 17" pusher , has external trans cooler mounted on front of radiator , , can I keep same setup and use the tri flow?
Yes,
you may have to fabricate mounting brackets for your trans cooler.
Date published: 2023-04-17
What size are the tubes in this radiator ?
It was developed with 2 rows and
a 1 inch oval tube core
and a unique coolant path that routes the coolant through the radiator core 3 times and increases turbulent flow while passing the coolant in front of the fan 3 times.
Traditional radiators only pass the coolant 1 time in the front of the fan. This is what makes this Radiator the best on the market.
https://www.eastwood.com/images/pdf/20150Q_inst.pdf
Date published: 2023-08-30
Your radiators are significantly smaller than the one I have in my vehicle. Mine is 33 w by 3. It appears I would be reducing the amount of water for my engine in your radiator. So your radiator would be equipped to cool efficiently with less water?
Yes it will cool better but it might not hold that much less coolant than your bigger radiator due to these being a 2 core 3 pass design.
Date published: 2022-08-30
Does the 22” radiator come with automatic trans cooler connections also would it keep a big block cool?
Yes, the connection ports are on these radiators upon arrival. These will all cool up to 500hp at a max.
Date published: 2022-08-23
Can the radiator be ordered with the brackets reversed/flipped so that the mounting flanges are flush with the coolant inlet/outlet side? I need to recess the radiator into the mounting frame away from the engine. Thanks
No, this radiator comes as-is and can not be modified before shipping out.
Date published: 2022-06-21
